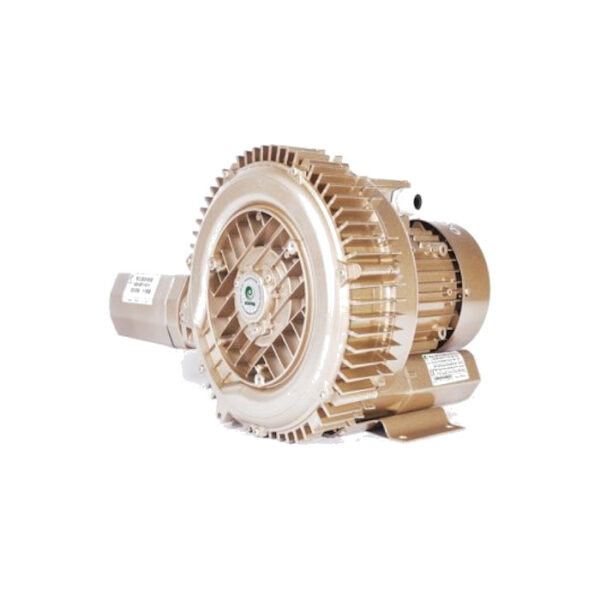

0.85kW Side-Channel Blower, GHBH 1D2 12 2R3

Description

Download the 850 watt two-stage blower specification, dimensional drawing and blower curve.

Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.

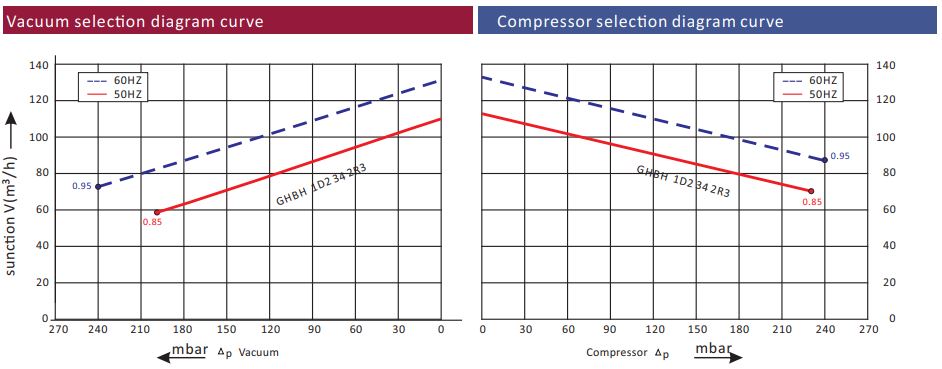

See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude..

Additional information

Goorui
