1.6kW two-stage side-channel blower, GHBH 002 34 2R4
R10,783.00 Excl. VAT
Air blower, side channel (regenerative), 1.6 kW double-stage, 380 Volt, 3ph, three-phase, 150 m3/h max. air flow, -280 mbar max. vacuum, 280 mbar max. pressure.
- Description
- Additional information
- Blower specification
- Blower curve
Description
Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.

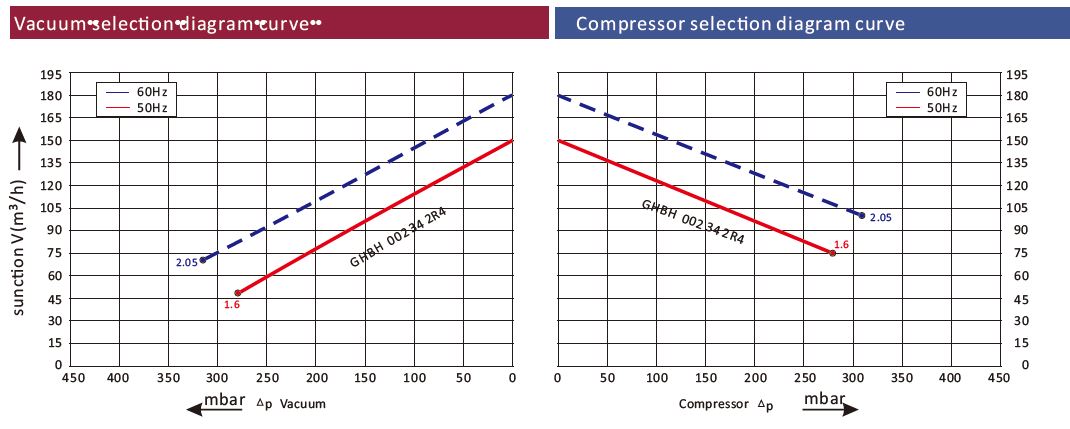

See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude.
Two stage blowers have 2 impellers and so maintain pressure or vacuum better than single stage blowers.
Additional information
| Weight | 33 kg |
|---|---|
| Dimensions | 45 × 45 × 47 cm |
| Brand | Goorui |
| Model Number | GHBH002342R4 |
| Rated Voltage | 380V, 3ph @50Hz |
| Rated Power | 1.6 kW |
| Rated Current | 7.5A |
| Maximum Air Flow | 150 m3/h |
| Maximum Vaccuum | -280 mbar |
| Maximum Pressure | 280 mbar |
| Stage | 2 |
| Phase | 3 |
| Sound | 66 dB |
