250W Side-Channel Blower, GHBH 0D3 12 1R1
R4,506.00 Excl. VAT
Air blower, side channel (regenerative), 0.25 kW single-stage, 220-240 Volt, single-phase, 70 m3/h max. airflow, -100 mbar max. vacuum, 100 mbar max. pressure.
- Description
- Additional information

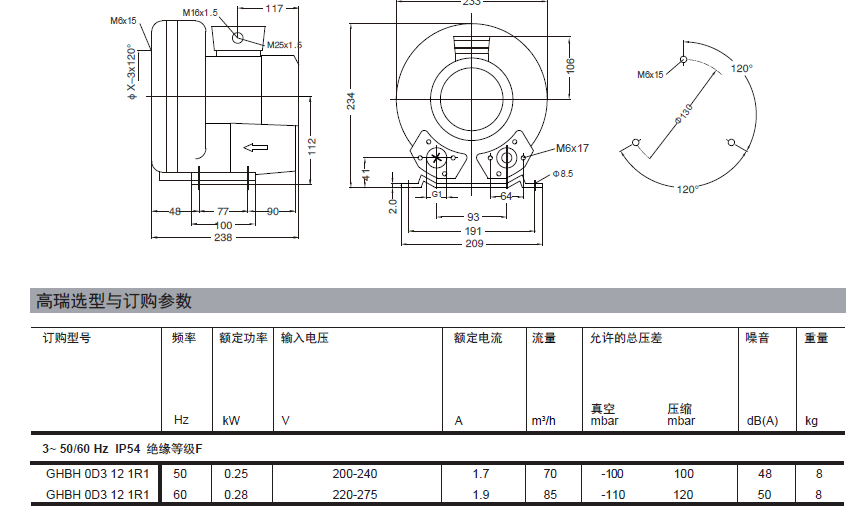

- Blower specification

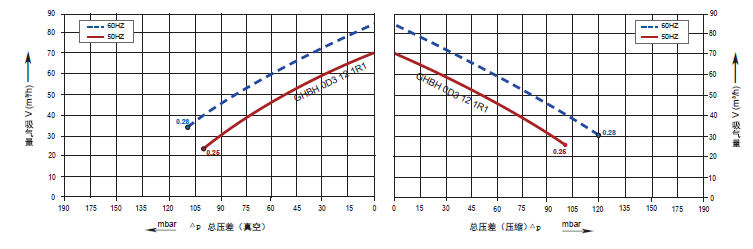

- Blower curve
Description
Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.
See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude.
1/2 meter of water = 50mbar. Adjustment for a Johannesburg altitude compared to the coast is a factor of 1.2 = 60mbar at 1573m. So, generally this blower is recommended to up to 0.8m of water, giving some allowance for friction losses and altitude. Advised delivery pipe diameter for 10m of pipe between the blower and air delivery is 65mm.
Download blower curve & specification: GHBH 0D3 12 1R1 .
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 31 × 30 × 30 cm |
| Brand | Goorui |
| Model Number | GHBH0D3121R1 |
| Rated Voltage | 220V-240 AC @50Hz |
| Rated Power | 250 watt |
| Rated Current | 1.9A |
| Maximum Air Flow | 70 m3/h |
| Maximum Vaccuum | -100 mbar |
| Maximum Pressure | 100 mbar |
| Stage | 1 |
| Phase | 1 |
| Sound | 48 dB |
| Intake Filter | MF08 intake filter is needed. |
| Outlet ID | 60mm @ 10m pipe; |
| Advised Water Depth | 80cm dependent on altitude and other factors. |

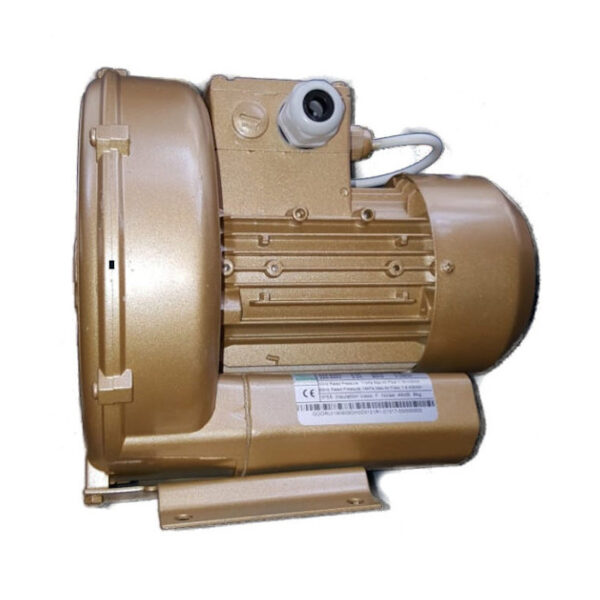

250 watt side channel blower
