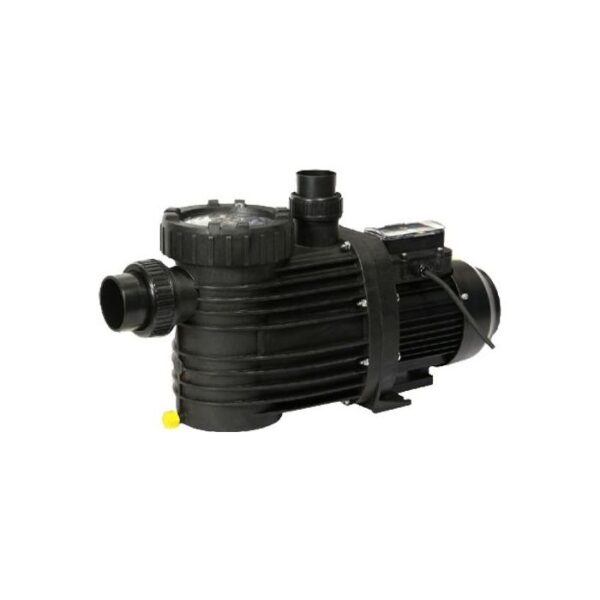

BADU Eco VSD Pro 20 (0.75kW) Pool Pump

Description

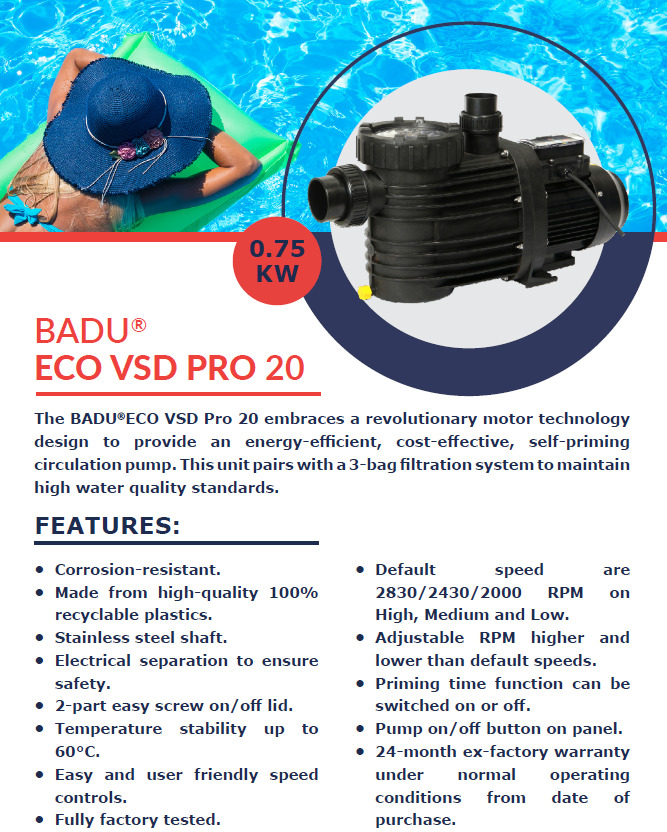

Badu Eco VSD Pro, 0.75kw self-priming variable speed circulation pump with 3 default speeds.

Specifications:

• Corrosion-resistant.
• Made from high-quality 100% recyclable plastics.
• Stainless steel shaft.
• Electrical separation to ensure safety.
• 2-part easy screw on/off lid.
• Temperature stability up to 60°C.
• Easy and user-friendly speed controls.
• Default speeds are 2830/2430/2000 RPM on High, Medium and Low.
• Adjustable RPM higher and lower than default speeds.
• Priming time function can be switched on or off.
• Pump on/off button on panel.
• Fully factory tested.

Additional information

Automatic (Default Settings)

• The default speeds are 2830/2430/2000 rpm on High (3), Medium (2), and Low (1), respectively.
• No 3 – High (2850) = 100% of the motor power capacity.
• No 2 – Medium (2400) = 80% of the motor power capacity.
• No 1 – Low (2000) = 60% of the motor power capacity.
• When starting the pump, the unit will begin “priming” on high for 5 minutes. The priming speed is at 2850rpms.
• When completed, it will automatically default to the predetermined speed setting. The
  pump will immediately stop when the “0” button is pressed and can be restarted with any of the speed buttons.

Manual Operation

• The default speeds are 2830/2430/2000 rpm on High (3), Medium (2) and Low (1), respectively.
• There are 2 options for running the motor under the manual setting: Constant power or constant speed.
• Option 1 – Setting Fixed Power (Constant Power Operation Mode)
• To change the default power setting, the “adjust” mode can be easily accessed by pressing the “SET” for 3 seconds until the display begins to flash.
• The power percentage can then be changed with the buttons “▼▲”.Every time the button “▼” or “▲” is pressed, the power decreases or increases by 1%. The upper limit of the power is 100%, and the lower limit is 5%.
• To save the set power percentage, confirm with the “OK” button. To cancel and return to the original speed, press the “SET” button.
• Option 2 – Setting Fixed Speed (Constant Speed Operation Mode) To change the default RPM (speed), the “adjust” mode can be easily accessed by pressing the “SET”
  for 3 seconds until the display begins to flash. The speed can then be changed with the buttons “▼▲”.Every time the button “▼” or “▲” is pressed, the speed decreases or increases by 50rpm.
• The upper limit of the speed is 3400rpm, and the lower limit is 1000rpm. To save the set speed, confirm with “OK” button. To cancel and return to the original speed, press the “SET” button.
• Extra Feature: Setting The Priming Speed And Time
  With the BADU®ECO VSD Pro, you can set the priming speed and time at which the pump starts with for even better electricity savings!
• The motor has to be stopped (“0” button) to program the priming speed and time. Press the “SET” button again for at least 3 seconds until the speed displayed in the LED window begins to flash.
• The speed can then be set with what the motor is to start up with during the priming time. The speed can be changed with the buttons “▼▲”. The upper limit of the priming speed is 2850rpm, and the lower limit is 1000rpm.
• Press the button “OK to save the speed setting and enter the phase for priming time setting, or press “SET” to cancel and return to the previous mode. After the priming speed has been set, the period of the priming time can be specified with regard to a range from 0 to 10 minutes.
