3KW 9-19 High Pressure Centrifugal Blower (9-19-4.0A-2-3KW)
R17,375.00 Excl. VAT

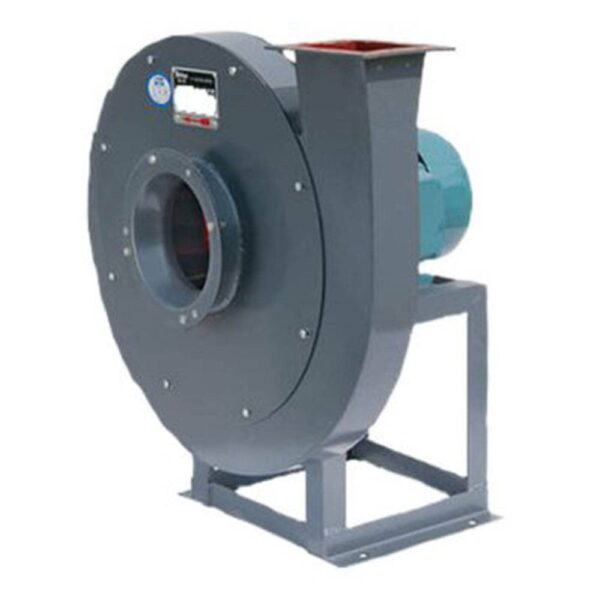

3kW High Pressure Centrifugal Blower (9-19-4.0A-2-3KW)
With 400mm impeller diameter, this blower operates at 380V/2900 rpm, delivering 1704 m³/hr airflow at 3253 Pa pressure. Ideal for industrial ventilation, dust collection, and material handling applications requiring reliable high-pressure performance.
- Description
- Additional information
Description
9-19 High Pressure Centrifugal Blower Range
Professional Industrial Ventilation Solution for High-Pressure Applications

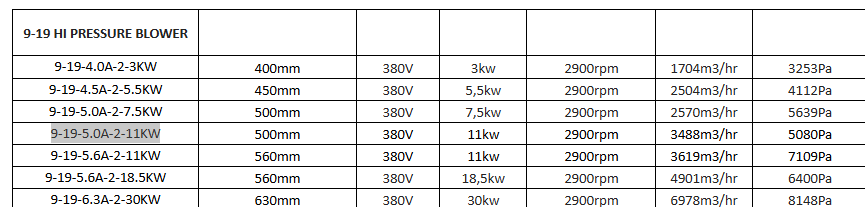

The 9-19 High Pressure Centrifugal Blower is a robust industrial fan designed for demanding ventilation, exhaust, and material handling applications. This high-performance blower features sizes ranging from 400mm to 630mm with volume capacity from 1704m³/hr to 6978m³/hr, delivering pressure between 3250Pa to 8140Pa with power ratings from 3kW to 30kW.
Key Specifications:
Operating Voltage: 380/220VAC with revolution speed of 2900r/min
Air Flow Range: 402-6978m³/H with current consumption of 3.15-6.3A
Construction: Stainless steel material for durability and corrosion resistance
Temperature Rating: Medium temperature up to 50°C normally (maximum 80°C), with dust and particle content not exceeding 150mg/m³
Applications:
Ideal for manufacturing, dust exhausting, and ventilating applications, the 9-19 series is widely used for material transportation and forging furnaces and high-pressure forced ventilation systems.
Features:
High pressure output with minimal vibration, precision laser-cut components for enhanced performance and aesthetic appeal
Centrifugal flow design for maximum efficiency
Available in multiple transmission configurations
Suitable for both suction and exhaust operations
This industrial-grade blower combines reliability, efficiency, and versatility for demanding commercial and industrial ventilation requirements.
Additional information
| Weight | 110 kg |
|---|---|
| Dimensions | 700 × 600 × 700 cm |
