5.5KW 9-26 High Pressure Centrifugal Blower (9-26-4.0A-2-5.5KW)
R21,532.00 Excl. VAT
5,5 kW 9-26 High Pressure Centrifugal Blower (9-26-4.0A-2-5.5KW)
With 400mm impeller diameter, this blower operates at 380V/2900 rpm, delivering 2536 m³/hr airflow at 3765 Pa pressure. Ideal for industrial ventilation, dust collection, and material handling applications requiring reliable high-pressure performance.
- Description
- Additional information
- Specifications
Description
Professional Industrial Ventilation Solution for High-Pressure Applications
The 9-26 High Pressure Centrifugal Blower is a robust industrial fan designed for demanding ventilation, exhaust, and material handling applications.
Specifications

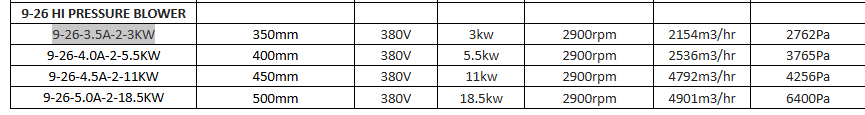

Overall Range:
Flow Rate: 2154-4901 m³/hr
Full Pressure: 2762-6400 Pa
Power Range: 3-18.5 kW
Impeller Diameter: 350-500mm
Speed: 2900rpm (constant across all models)
Voltage: 380V (standard)
Performance Features
High Pressure Capability: Delivers 2762-6400 Pa static pressure across the range
Variable Flow Rates: 2154-4901 m³/hr capacity range to suit different applications
Consistent Operating Speed: 2900 rpm across all models for reliable performance
Scalable Power Options: 3kW to 18.5kW motor configurations
Design Features
Multiple Impeller Sizes: 350mm to 500mm diameter options for different performance requirements
12-Blade Impeller Design: 12 blades at 20-degree angle for optimal air movement
Dual Transmission Modes: Type A and Type D transmission options
Robust Construction: Carbon steel turbine head with various material options available
Electrical Features
Standard Industrial Voltage: 380V three-phase power supply
Energy Efficient Motors: Range from 3kW to 18.5kW for different capacity needs
Low Noise Operation: 70-90 dB noise levels
Material Options
Corrosion Resistance: Available in high-quality steel, stainless steel, glass steel or other corrosion-resistant materials
Application-Specific Materials: Can be customized based on the conveyed medium
Safety & Reliability Features
Temperature Control: Bearing temperature rise limited to 40℃ above ambient
Vibration Control: Bearing vibration velocity maintained below 6.3mm/s
Safe for Various Media: Suitable for non-combustible, non-toxic, non-corrosive gases
Application Versatility
Industrial Ventilation: Forging furnaces and high-pressure forced ventilation
Material Conveying: Widely used for conveying materials
Metallurgical Applications: Compulsory ventilation in forging and metallurgy stoves
Additional information
| Weight | 160 kg |
|---|---|
| Dimensions | 100 × 85 × 90 cm |
