0.37kW Cast Aluminium Pressure blower

R3,970.00 Excl. VAT

JC-E5A Cast Aluminium Pressure blower, 0.37kW, single phase, 220 volt, with a maximum of 720m3/h and 1880 Pa. 1 Week lead time.

SKU: JC-E5A-YYF7112 Category:
View cart

Description

JC-E5A Cast Aluminium  pressure  blower

0.37kW, single phase, 220 volt, with a maximum of 720m3/h and 1880 Pa. Image is for illustrative purposes only and can vary.

1. Material: Aluminum alloy materials for the housing and impeller. 100% Copper Motor
2. Structure: YYF Series Medium Air Blower adopts centrifugal structure.
3. Advantage: Light-weight,Low noise, high volume, medium to low pressure.
3. Usage: Used in Smelting or equipped with oil melting furnace and kitchen equipment, inflation (jumping castles, inflatables) and pressuring facility. Also used with industrial boiler, machine for plastic products or other equipment which need high volume air blasting.



Additional information

Weight 35 kg
Dimensions 30 × 50 × 50 cm

JC Series Aluminium Pressure Blowers

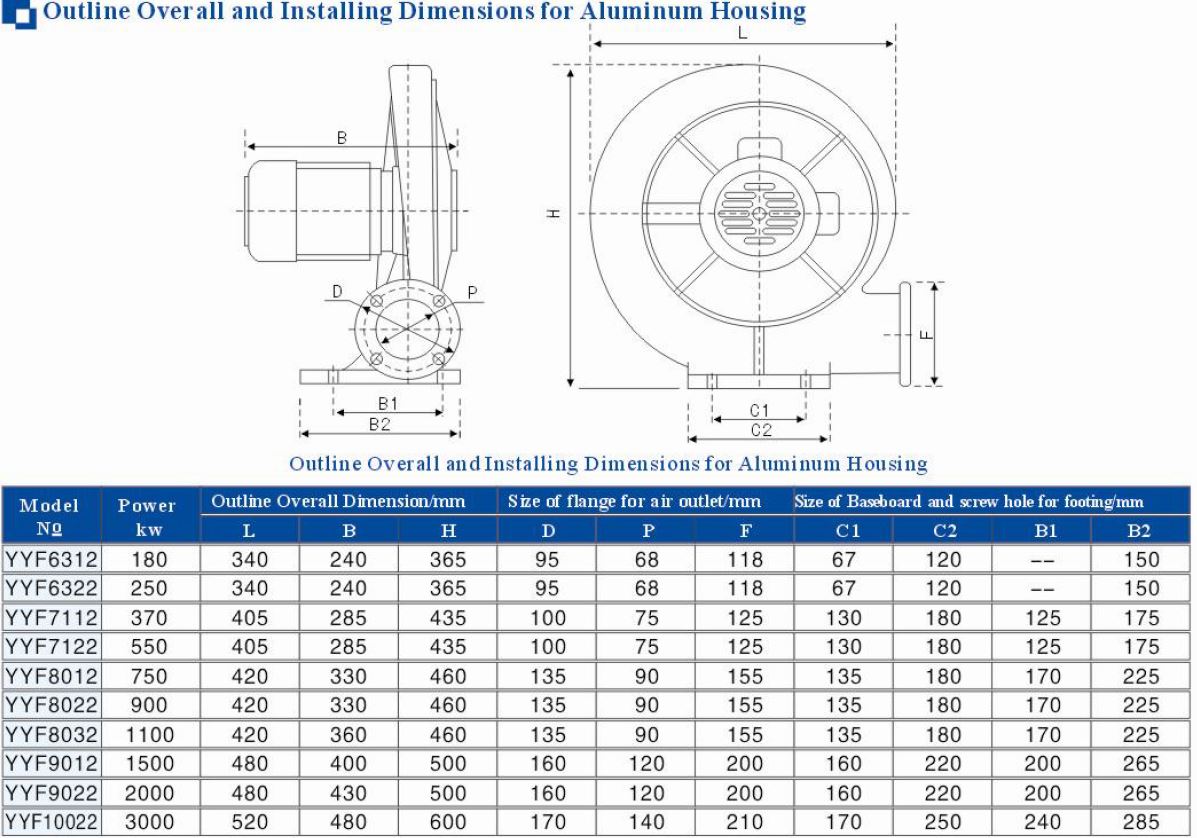

Aluminium Pressure blower dimensions

centrifugal blower dimensions drawing
centrifugal blower dimensions drawing

JC-E5A-YYF6312: 30 x 40 x 40cm, 30kg
JC-E5A-YYF6322: 30 x 40 x 40cm, 35kg
JC-E5A-YYF7112: 30 x 50 x 50cm, 35kg
JC-E5.5A-YYF7122: 30 x 50 x 50cm, 35kg
JC-E6A-YYF8012: 40 x 50 x 50cm, 40kg
JC-E10TA-YYF8022: 40 x 50 x 50cm, 45kg
JC-E9TD-YYF8032: 40 x 50 x 50cm, 50kg
JC-E7TD-YYF9022: 50 x 60 x 50cm, 50kg
JC-E8TD-YYF9032: 50 x 60 x 50cm, 50kg
