1.1kW Cast Aluminium Pressure blower

R6,750.00 Excl. VAT

JC-E9TD-YYF8032 Aluminium Pressure Blower. 1.1kW, single phase, 380 volt, with a maximum of 1500m3/hr and 2400 Pa.  1 Week lead time.

SKU: JC-E9TD-YYF8032 Category:
View cart

Description

JC-E9TD Cast Aluminium  pressure  blower

1.1kW, three phase, 380 volt, with a maximum of 1500m3/hr and 2400 Pa. Image is for illustrative purposes only and can vary.

1. Material: Aluminum alloy materials for the housing and impeller. 100% Copper Motor
2. Structure: YYF Series Medium Air Blower adopts centrifugal structure.
3. Advantage: Light-weight,Low noise, high volume, medium to low pressure.
3. Usage: Used in Smelting or equipped with oil melting furnace and kitchen equipment, inflation (jumping castles, inflatables) and pressuring facility. Also used with industrial boiler, machine for plastic products or other equipment which need high volume air blasting.



Additional information

Weight 50 kg
Dimensions 40 × 50 × 50 cm

JC Series Aluminium Pressure Blowers

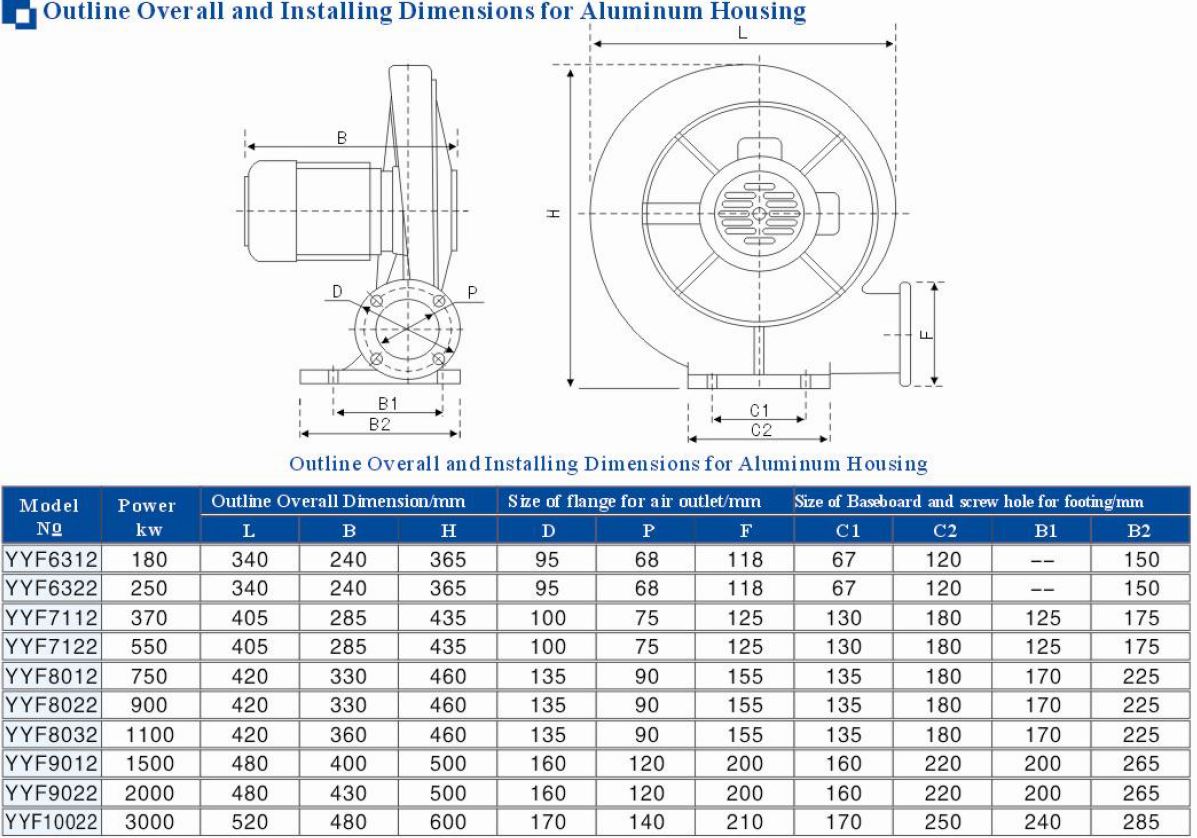

Aluminium Pressure blower dimensions

centrifugal blower dimensions drawing
centrifugal blower dimensions drawing

JC-E5A-YYF6312: 30 x 40 x 40cm, 30kg
JC-E5A-YYF6322: 30 x 40 x 40cm, 35kg
JC-E5A-YYF7112: 30 x 50 x 50cm, 35kg
JC-E5.5A-YYF7122: 30 x 50 x 50cm, 35kg
JC-E6A-YYF8012: 40 x 50 x 50cm, 40kg
JC-E10TA-YYF8022: 40 x 50 x 50cm, 45kg
JC-E9TD-YYF8032: 40 x 50 x 50cm, 50kg
JC-E7TD-YYF9022: 50 x 60 x 50cm, 50kg
JC-E8TD-YYF9032: 50 x 60 x 50cm, 50kg
