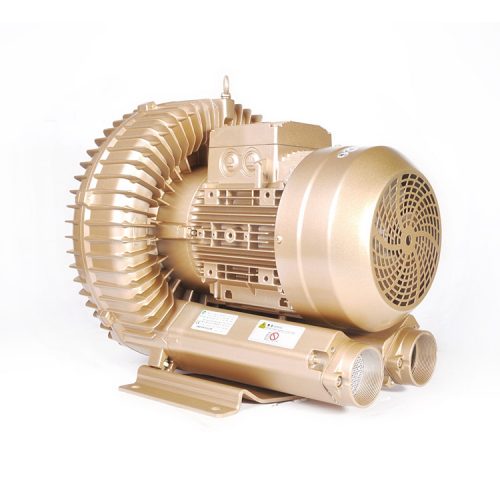

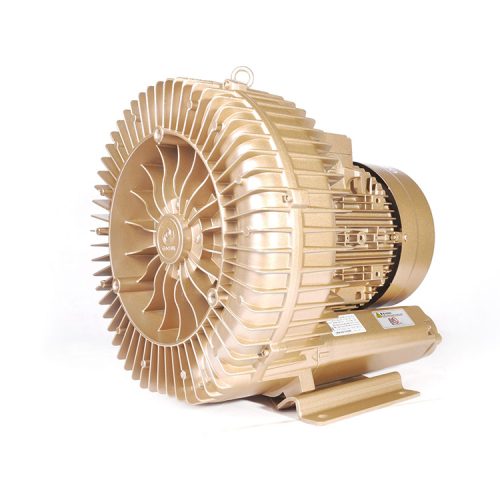

3kW Side-Channel Blower, GHBH 004 34 AR6

R14,000.00 Excl. VAT

Air blower, side channel (regenerative), 3 kW single-stage, 380 Volt, 3ph, three-phase, 345 m3/h max. air flow, -240 mbar max. vacuum, 220 mbar max. pressure delivery.

Availability: In stock SKU: GHBH00434AR6 Category: Tags: , ,
View cart

Description

Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.

See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude.

Download blower curve & specification.

Additional information

Weight 40 kg
Dimensions 45 × 45 × 47 cm
Brand

Goorui

Model Number

GHBH00434AR6

Rated Voltage

380V, 3ph @50Hz

Rated Power

3 kW

Rated Current

12.5A

Maximum Air Flow

345 m3/h

Maximum Vaccuum

-240 mbar

Maximum Pressure

220 mbar

Stage

1

Phase

3

Sound

65 dB(A)

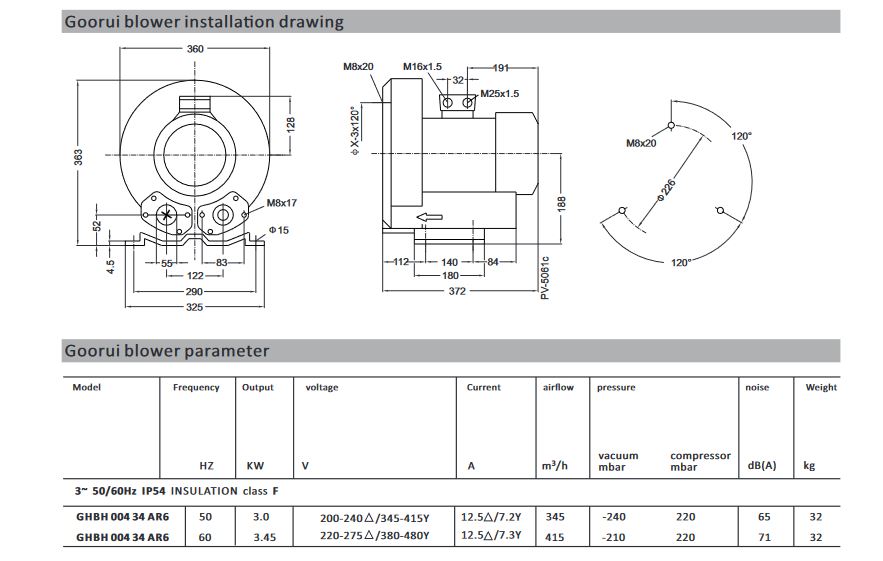

GOORUI blower dimensions ghbh 004 34 AR6
GOORUI blower dimensions ghbh 004 34 AR6

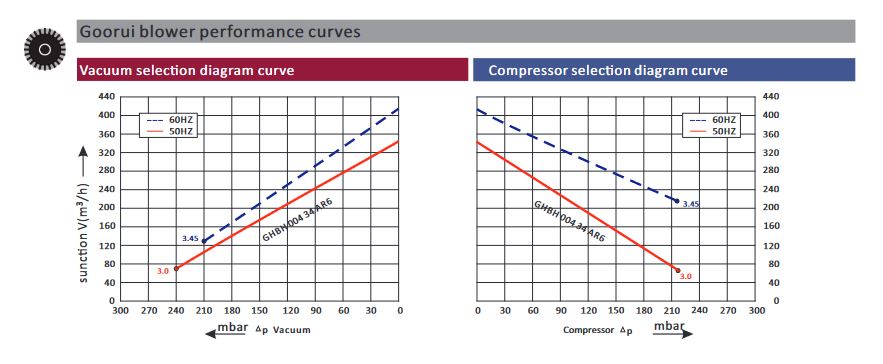

GOORUI blower curve GHBH 004 34 AR6
GOORUI blower curve GHBH 004 34 AR6
