700W Side-Channel Blower, GHBH 001 34 2R2
R8,049.00 Excl. VAT
Air blower, side channel (regenerative), 0.7 kW double-stage, 380 Volt, 3ph, three-phase, 88 m3/h max. air flow, -210 mbar max. vacuum, 240 mbar max. pressure
- Description
- Additional information
- Blower specification
- Blower curve
Description
Side channel (regenerative or ring or Vortex) blowers. These blowers are also called regenerative blowers. Side channel blowers function as vacuum pumps or air delivery blowers. They can generate significantly higher pressures than industrial fans. They are used for both vacuum and pressure applications. Regenerative Blower are dynamic compressors, in which a rotating impeller drives the air and creates/maintains the pressure. These blowers run on bearings and have no other wearing parts. They are a good choice for aerating water and so widely used in water applications, such as sewage treatment, aquaponics, hydroponics, aquaculture etc.

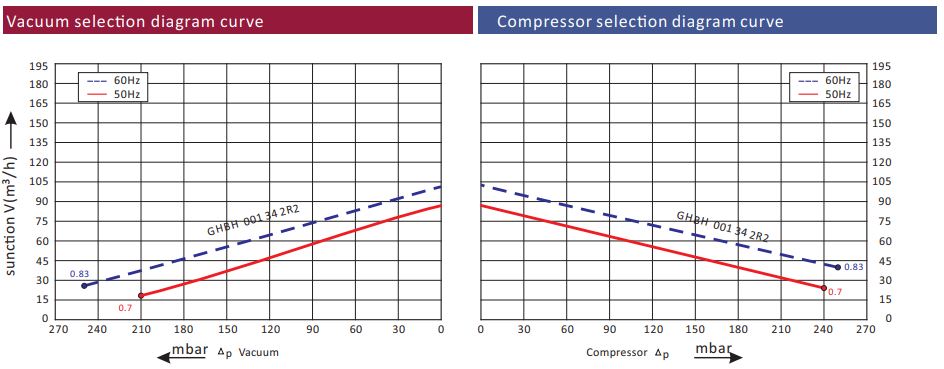

See the blower curve and data table. The maximum pressure (or vacuum) is the sum of all pressure requirements: water depth, pipe distance, pipe diameter, air diffuser system design, bends, valves and altitude.
Download the blower curve, specification and dimensional drawing.
Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 40 × 40 × 40 cm |
| Brand | Goorui |
| Model Number | GHBH001342R2 |
| Rated Voltage | 380V, 3ph @50Hz |
| Rated Power | 700 watt |
| Rated Current | 3.8A |
| Maximum Air Flow | 88 m3/h |
| Maximum Vaccuum | -210 mbar |
| Maximum Pressure | 240 mbar |
| Stage | 2 |
| Phase | 3 |
| Sound | 55 dB |
