Azud Modular 100 SCreen Filter
Azud Modular 100 Screen Filter

Azud Modular 100 Screen Filter 130 Micron

Azud Modular 100 Disc Filter Azud Modular 100 Disc Filter 130 Micron
Azud Modular 100 SCreen Filter Azud Modular 100 Screen Filter 100 Micron

R151.00 – R485.00 Excl. VAT

The Azud Modular 100 Screen Filter (130 Micron) is a durable manual irrigation filter made of high-quality plastic and stainless steel, designed for reliable performance and easy maintenance. Suitable for flows up to 25 m³/h (110 gpm) and pressures up to 8 bar, it features a large filtering area, threaded closure system, and integrated ports for pressure gauges or drainage. Resistant to chemicals and tool-free for cleaning, it ensures efficient filtration with minimal upkeep. Available in a range of sizes to fit various irrigation system requirements. Lead time is 4 weeks.

SKU: N/A Categories: ,
Clear
View cart

Description

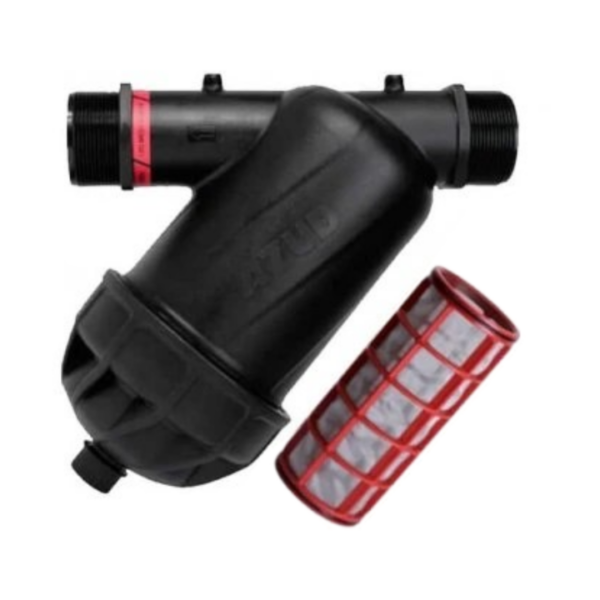

Azud Modular 100 Screen Filter 130 Micron

SCREEN FILTER element manufactured, in plastic and stainless steel.

AZUD MODULAR 100 is the manual filter series for exclusive use for irrigation water filtration application. Manufacture in plastic which ensures easy maintenance, high resistance and durability.

Flows up to 25 m3/h (110 gpm).

ADVANTAGES

  • MAXIMUM QUALITY AND SAFETY IN FILTRATION in a wide range of filtration grades in discs and screens.
  • LARGE FILTERING AREA RESULTS IN LESS MAINTENANCE. Allows for a reduction in the frequency and level of maintenance. The filter elements can be removed for cleaning.
  • ROBUSTNESS. Base and lid manufactured in high quality thermoplastic.
  • THREADED CLOSURE SYSTEM efficient from low to high pressures.
  • GASKET SET IN THE LID. This avoids loss or wear during maintenance.
  • EQUIPPED WITH AUXILIARY CONNECTIONS. Lid has threaded connections, this allows easy draining or pressure relief. Ports for Pressure Gauges.
  • EASY HANDLING, no tools required for maintenance.
  • EASY INSTALLATION.
  • RESISTANCE TO CHEMICAL PRODUCTS. With special gaskets

MATERIALS OF CONSTRUCTION

  • Housing- Technical Plastic
  • Filtration Eelements- Polypropylene grooved discs.Stainless steel AISI 316 screen
  • Maximum pressure 8 bar / 116 psi • Maximum temperature 60 ºC / 140 ºF

Additional information

Weight N/A
Dimensions N/A

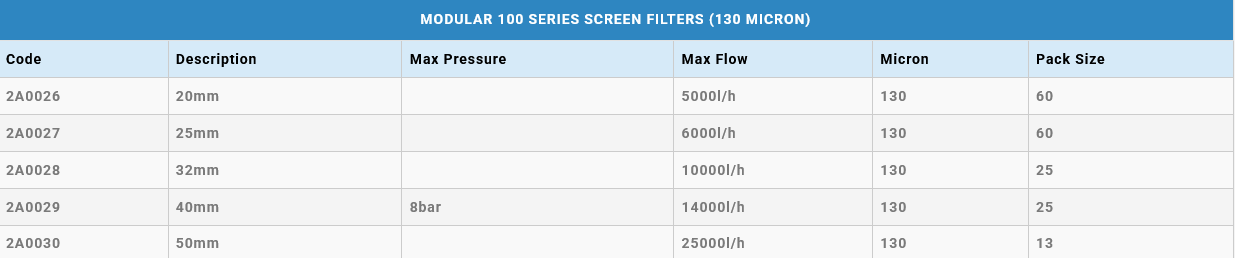

Sizing

20mm 8bar 5000 l/h, 25mm 8bar 6000 l/h, 32mm 8bar 10 000 l/h, 40mm 8bar 14 000 l/h, 50mm 8bar 25 000 l/h
