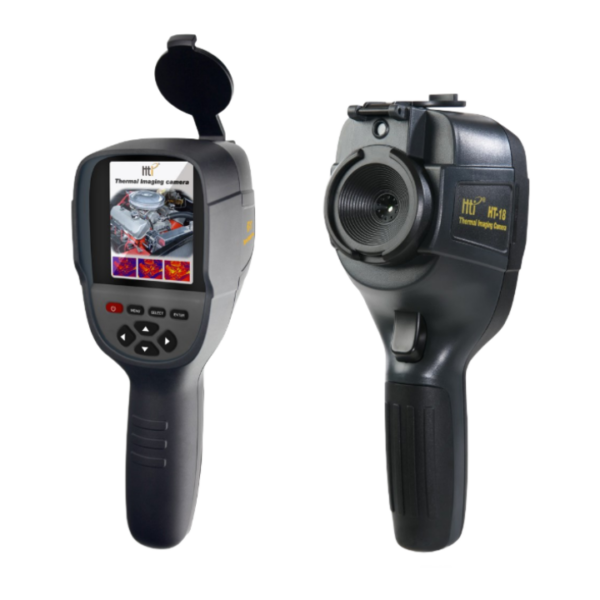

HT-18+ Thermal Imaging Camera
R10,300.00 Excl. VAT
The HT-18+ Thermal Imaging Camera is a versatile and advanced digital infrared thermal imager designed for professional use. It features a 3.2” TFT color LCD display, offering 256 x 192 thermal resolution (49,152 pixels) and a 640 x 480 visual resolution (0.3MP). With a high thermal sensitivity (≤50mK @ 25℃), this camera provides precise temperature readings in a range from -20°C to +550°C, with an accuracy of ±2% or ±2°C. Its advanced features include thermal and visual image fusion, adjustable emissivity, multiple color palettes, and the ability to store images and videos in JPEG and MP4 formats, with 4GB of built-in memory. Lead time is 3-4 weeks.
- Description
- Additional information
- Data Sheet
Description
HT-18+ Thermal Imaging Camera
Digital Infrared Thermal Imaging Camera / Thermal Imager
Applications:
The HT-18+ is ideal for industrial, electrical, mechanical, and building inspection applications. It helps detect overheating electrical components, identify insulation problems, monitor machinery, and assess building conditions. The camera’s fusion capability allows for combined thermal and visual images, making it an excellent tool for both preventive maintenance and troubleshooting. It is especially valuable for HVAC inspections, fire safety checks, and any task requiring high-precision thermal analysis. With its portable design and rechargeable battery, it provides a convenient solution for professionals in various fields.
Specifications
- Display Screen: 3.2” Full angle TFT colour LCD
- Visual Image: 640 x 480 (0.3MP)
- IR Thermal Image: 256 x 192 (49,152 pixels)
- IR Detector: Vanadium Oxide uncooled infrared focal plane
- Cell Size: 12µm
- Lens Focal Length: 3.2mm / Fixed focus
- NETD: ≤50mK @ 25℃ / F/1.1
- Field Angle: 56° x 42°/ IFOV3.75mrad
- Image Refresh Rate: ≤25Hz
- Range: -20°C to +550°C (split in two ranges Low/High)
- Accuracy: ±2% rdg. or ±2°C (whichever is greater)
- Resolution: 0.1°C
- Emissivity Adjustable: 0.10~1.00
- Spectral Response: 8~14µm
- Centre point and Hot/Cold spot markers
- Colour Palettes: Rainbow, Iron Oxide, Cold, Black & White, White & Black
- Thermal and Visual image fusion in 25% steps
- Memory: Built-in 4GB memory
- Image Format: JPEG / MP4
- USB port for image and video download
- Software included (free download)
- Power Supply: Rechargeable 18650 Li-Ion battery
- c/w carry case, USB cable, battery and manual
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 25 × 11 × 10 cm |
