Linshang LS220 Integral Probe Coating Thickness Gauge
R3,940.00 Excl. VAT
Linshang LS220 Integral Probe Coating Thickness Gauge for Ferrous Non-ferrous Substrate Automotive Paint Thickness Measurement. With Bluetooth and free phone app. LS220 Automotive Paint Meter datasheet.
- Description
- Additional information
- Specifications
- Change Language
Description
Features:
Free app: Coating Thickness gauge from Shenzhen Linshang Technology with BlueTooth connection.
1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.
2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.
3．This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in winter of Northern China.
4．No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5．Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6．With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7．”Fe”, “NFe”, “Fe/NFe” three measurement modes can be set for the LS220 automotive paint meter
8．Ultra-small size for carrying around when going out for car inspection.
9．Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy
Software – free download

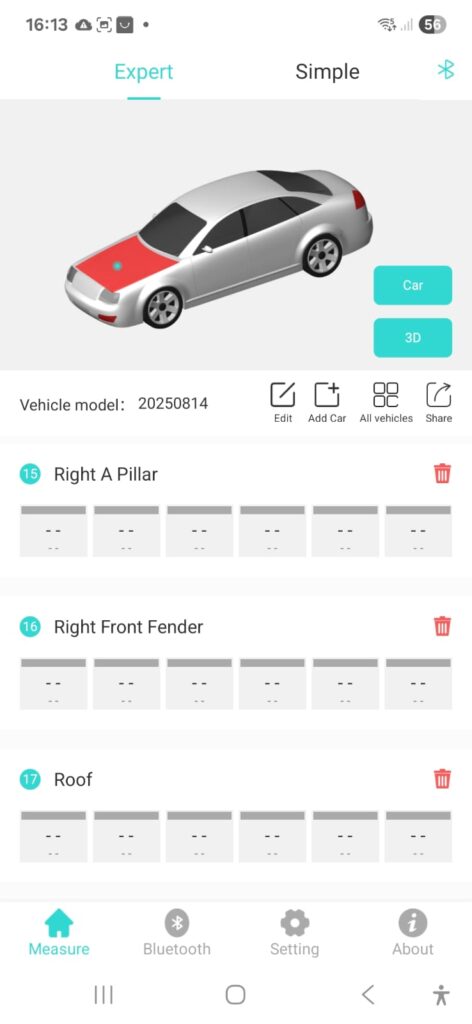

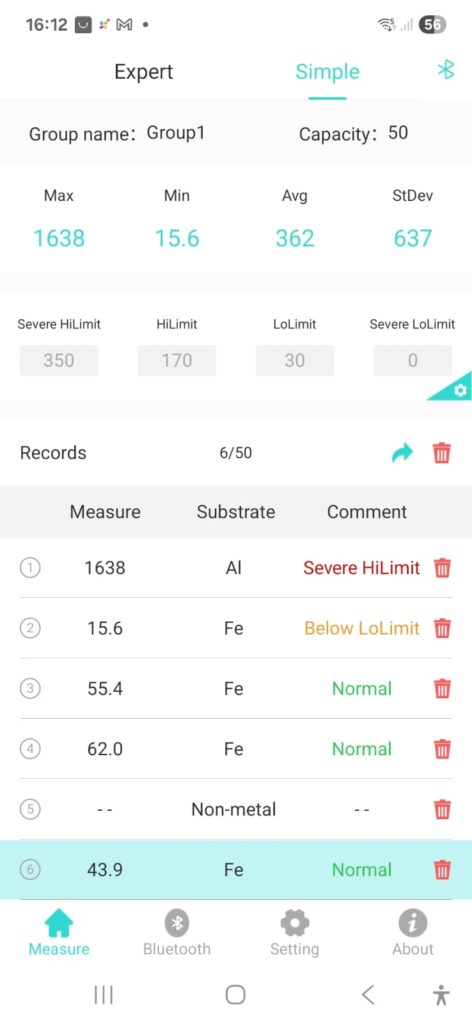

Sample of software:

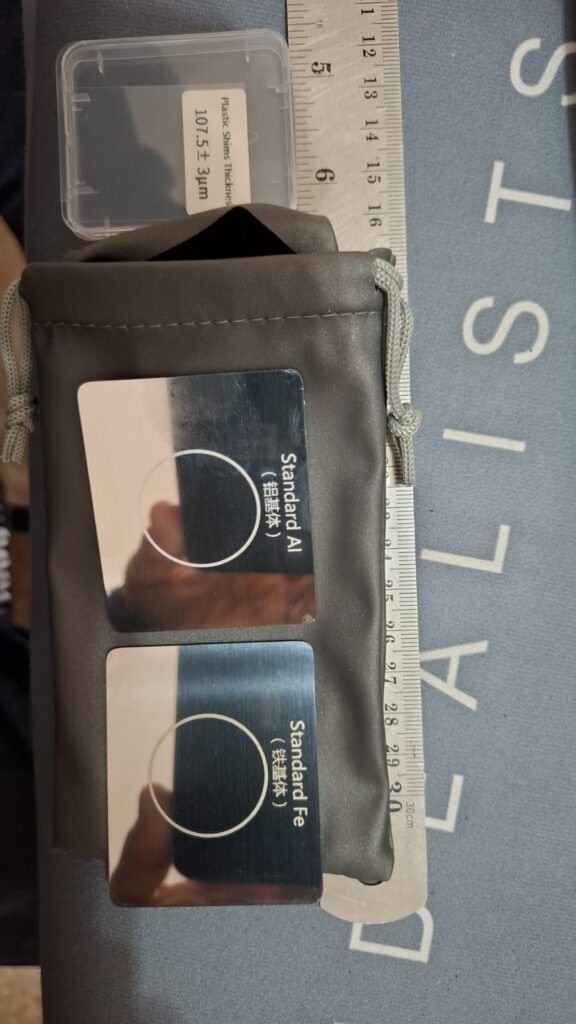

Accessorizes included
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 7 × 5 cm |
How to Switch the Language to English (LS220)
-
Ensure the gauge is turned off.
-
Enter the Settings Menu:
-
Press and hold the power button for 3 seconds while the gauge is off. This opens the settings interface. Linshang Tech ImagesManuals+
-
-
Navigate to Language Settings:
-
Use a short press to cycle through options until you reach “Language.” Linshang Tech ImagesManuals+
-
Press and hold the button for 3 seconds to select “Language.” Linshang Tech ImagesManuals+
-
-
Select English:
-
Once the language options appear (Chinese and English), short press the button to toggle and highlight English. Linshang Tech ImagesManuals+
-
-
Confirm Your Choice:
-
Long press (about 3 seconds) to confirm and apply English as the display language. The gauge will then return to the measurement interface. Linshang Tech ImagesManuals+
-
Quick Reference
| Action | Button Press |
|---|---|
| Enter settings menu | Long press, power off → hold for 3 s |
| Select “Language” option | Short press |
| Enter language selection | Long press (~3 s) |
| Choose English | Short press (to toggle) |
| Confirm English | Long press (~3 s) |
