Handheld XRF Spectrometer, Explorer 5000

R704,165.00 Excl. VAT

Handheld alloy analyzer, XRF X-ray Fluorescence Spectrometer

Availability: Out of stock SKU: Ex-5000 Category:


Introducing the EXPLORER 5000, a cutting-edge handheld alloy analyzer that provides fast and accurate detection without causing any damage. This powerful device can identify a wide range of precious metal alloys, including low alloy steel, stainless steel, tool steel, chrome/molybdenum steel, nickel alloys, cobalt alloys, nickel/cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, and more. Its rapid detection capabilities extend to aluminum and magnesium alloy grades, enabling reliable material identification and confirmation (PMI), as well as precise quality control. Equipped with a large-screen, high-resolution LCD and a new digital signal processor, the EXPLORER 5000 delivers performance on par with desktop analyzers, but with the added benefits of portability, small size, and light weight, making it perfect for field testing and analysis of various alloys.

Guideline price – contact us for a formal quote – is with the accessories set: 12V Auto Adapter, User Manual, Silver Standard Sample, Outlet Charger, Extra Batteries, USB Connector, USB Adapter.

Up to 5 software databases can be configured on a single Explorer XRF-including Alloy Analysis, Soil analysis, RoHS and Mineral Analysis.

Software Options
  • RoHS Software for Hazardous Substances
  • Alloy Analysis Software
  • Heavy Metals in Soil Software
  • Mineral Analysis Software
  • Precious Metals Software
  • Plating Thickness Software

Simultaneous detection of Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, Zr, Nb, Mo, Ru, Rh, Pd, Ag, In, Sn, Sb, Hf, Ta, W, Re, Pt, Au, Pb, Bi, Mg, Al, Si, P, S, and as optional extras you can add elements to customized the meter to your needs.


Typical Applications

  • Precious metal alloy
  • Iron and steel smelting
  • Waste metal recycling
  • Machinery manufacturing and processing
  • Boiler pressure vessel
  • Aerospace industry
  • Shipbuilding
  • Soil analysis

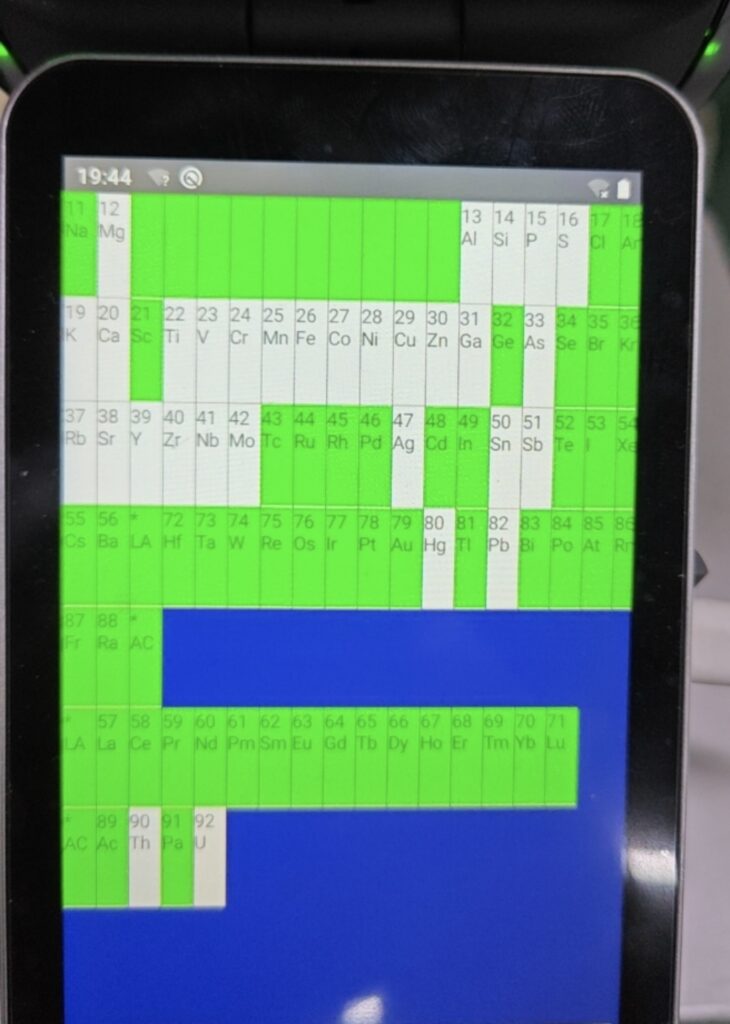

As a tool for soil analysis, this instrument will measure all the elements highlighted in white!

Soil element analysis capability
Soil element analysis capability


Soil element analysis capability
Soil element analysis capability

Additional information

Weight 15 kg
Dimensions 40 × 40 × 40 cm

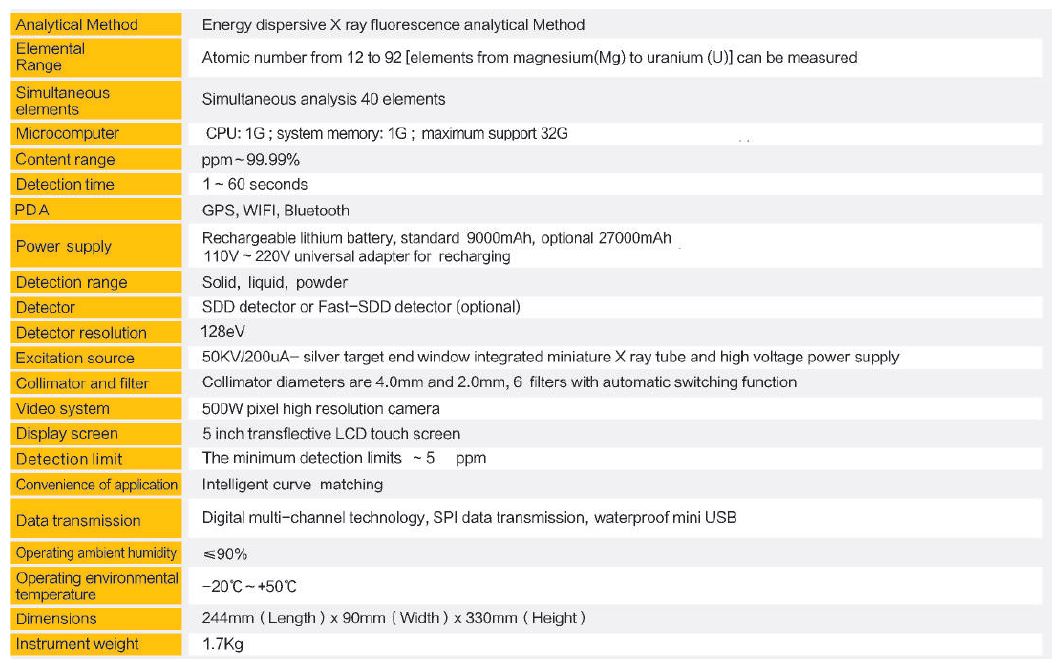

specification-XRF X-ray Fluorescence Spectrometer
Specification for XRF X-ray Fluorescence Spectrometer
Technical Specifications
Measurable elements: Magnesium(Mg) to Uranium (U)
Limits of Detection 1 ppm
Analysis Range: 1 ppm-99.999%
Test time 2 second results, average test time 20 seconds, testing can be set by user from 5 to 60 seconds
Battery: 9000mAh rechargeable lithium battery-up to 12 hours work time
Energy Resolution 128eV
Detector Fast SDD
Sample types Solids, liquids, powders
System Parameters GPS, WIFI, Bluetooth, SPI data transmission, waterproof mini USB, 1G CPU, system memory-1G, SD Card-4G test storage data, expandable to 32G.
Weight: 1.5 kg


Model EXPLORER 5000
Analytical Method Energy dispersive X ray fluorescence analytical Method
Elements   Measuring range Atomic   number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be   measured
Simultaneous   detector elements Simultaneous   analysis 40 elements
Microcomputer   system Customized   system; CPU: 1G ; system memory: 1G;extended stored maximum support 32G ;   standard 4G tor mass storage data
The   content range Ppm~99.99%
The   detection time 1-60   seconds (a second report results)
A   built-in system GPS,   WIFI, Bluetooth
Power   Supply Rechargeable   lithium battery, standard is 9000mAh, sustainable work up to 12 hours;   optional is 27000mAh super battery with wide voltage 110V-220V   universal adapter for recharging power supply
Detection   Objective Solid,   liquid, powder
Detector SDD   detector or Fast-SDD detector (optional)
Detector   resolution Minimum   can reach 128ev
The   excitation source 50KV/200uA-   silver target end window integrated miniature X ray tube and high voltage   power supply
Collimator   and filter Collimator   diameter are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching   functions
Video   system 500W   pixel high resolution camera
Display   screen Brand   new 5 inch transflective LCD touch screen, the resolution is 1080×720
Detection   limit The   minimum detection limits at 1-500ppm
Safety Multiple   safety protection, no test, no radiation, radiation levels at work are far   below the international standards, and has no sample telemetry, automatic   shut X light tube function. Standard radiation shields, thickened wall alloy   test instrument
Specialty Ore   special edition analysis software, using intelligent one key test
Convenience   of application Key   intelligent matching the best curve that no need to select curve
Data   transmission Digital   multi-channel technology, SPI data transmission, quick analysis, the high   count rate; waterproof mini USB, and can be connected with a desktop computer
Operating   ambient humidity ≤90%
Operating   environmental temperature -20°C-+50°C
Instrument   dimension 244mm   (Length) x 90mm (Width) x 330m (Height)
Instrument   weight 1.7KG
Intelligent   warming signals lndicator system Green   light means power on, red flushing means testing and yellow flushing means   the problems
Accessories Three-protection-box   is compression, waterproof and shock absorption. Universal charger and car   charger, 4G SD memory card and card reader

Two   Lithium battery and charger, PDA accessories, radiation shield. Optional accessories:   the large battery, seat type test support, Bluetooth printer, mil, manual pressure   machine, and other options can to chosen…

  • Explorer 5000 Handheld EDXRF spectrometer (1 unit)
  • Explorer Analyzer Installed in PDA (1 set)
  • PC software (1 set )
  • Accessory kit (1 set)
  • Accessory kit (1 set)
  • Stand—Optional (1 set)
  • Technical Documents:
    • Operation Manual,
    • A List of the Parts,
    • Inspection Report,
    • CE certificate,
    • Data and software CD,
    • Warranty card


Standard configuration- up to 2 software options
• 1000 Precious Metals Software
• 3000 RoHS Software for Hazardous Substances
• 5000 Alloy Analysis Software
• 9000 Heavy Metals in Soil Software
• 7000 Mineral Analysis Software
PDA microcomputer
1G CPU 1G System memory, optionally expandable up to 32G, and optionally add Bluetooth and GPS.
