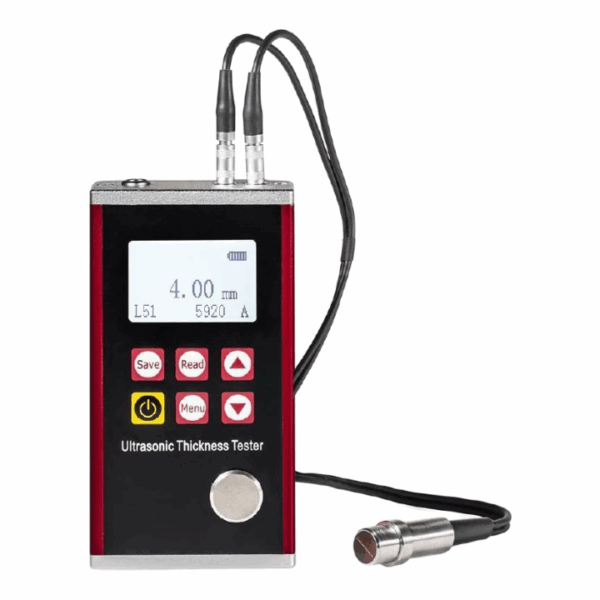

Ultrasonic Thickness Gauge Uee932
R12,800.00 Excl. VAT
The Ultrasonic Thickness Gauge UEE932 is a durable, precision instrument with a high-quality metal shell for non-destructive thickness measurement. Featuring dual probes, a 4mm calibration block, and a dual unit display (mm/inches), it works with metals, plastics, ceramics, and other ultrasonic-conductive materials. The device includes sound velocity measurement capability and PC software for data analysis, making it ideal for industrial inspection applications. Lead time is 4 weeks.
- Description
- Additional information
Description
Ultrasonic Thickness Gauge Uee932
Measuring Materials
Adapted to all kinds of materials which are good conductors of ultrasonic waves, such as metals(steel, cast iron, aluminum, copper, etc), plastic, ceramics, composites, epoxies, glass, etc.
Functions & Features
- High-quality metal shell
- Precise measuring performance with 2 probes (Standard probe and Angle probe)
- Integrated with a 4mm calibration block.
- Two display units: mm and inches.
- With a coupling state indication.

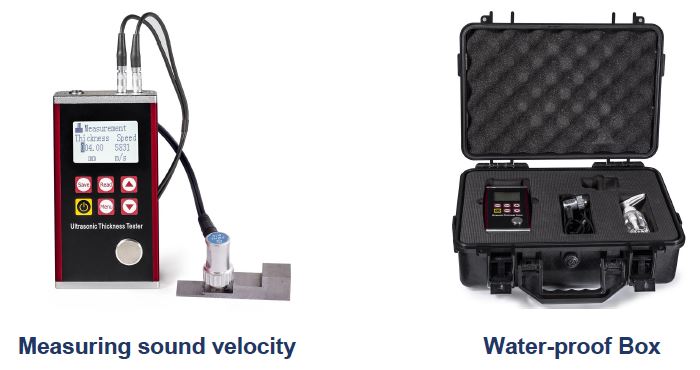

- Measuring sound velocity: according to the known thickness of the object, the sound velocity of it can be measured directly.
- Software for PC connection and data transmission, and analysis.

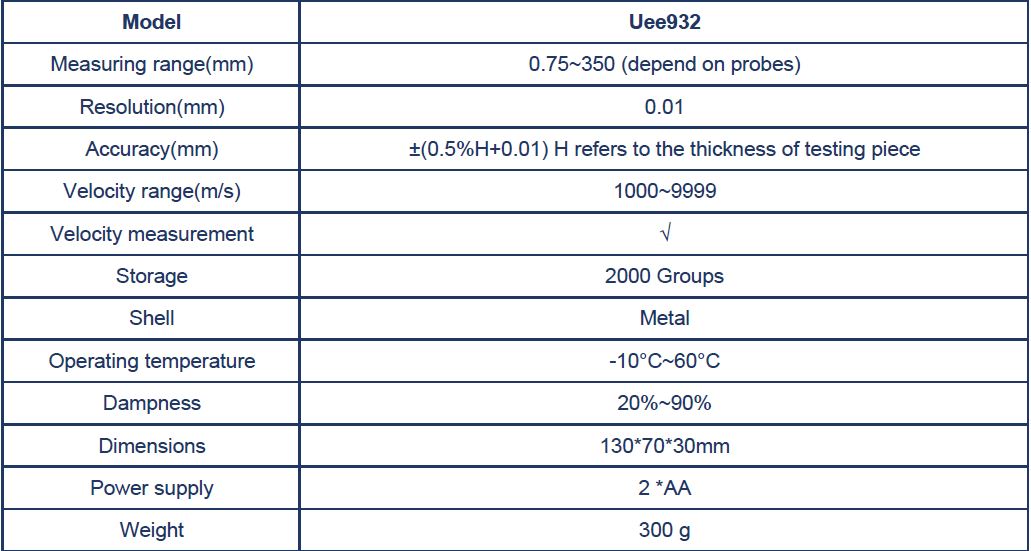

Specifications

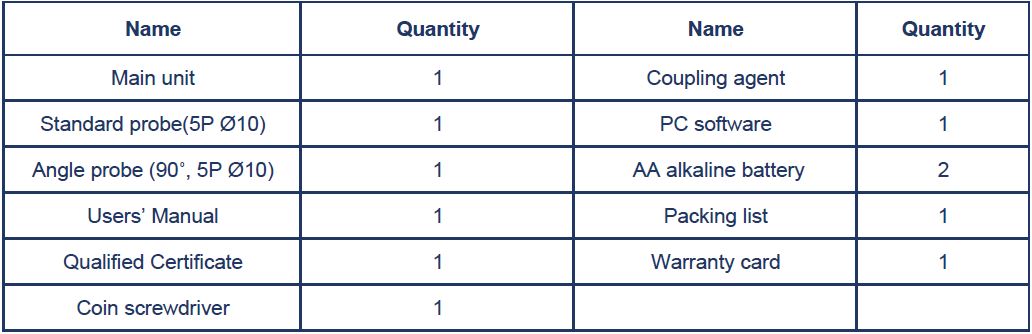

Standard Configuration
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
