Dissolved Oxygen Controller & Electrode Kit
R38,061.00 Excl. VAT
The HI8410 is a panel mounted dissolved oxygen controller that is used to maintain and monitor the concentration of DO in a wide range of industrial process applications. The HI8410 uses a Galvanic probe that typically requires less maintenance than a Polarographic style making it ideal for long term monitoring. This 4m galvanic dissolved oxygen probe is designed to monitor the concentration of DO in a wide range of industrial process applications. 10m and 30m is also available for the Galvanic DO Probe at extra cost. Lead time 4-6 weeks.
- Description
- Additional information
- Dissolved Oxygen Controller and Electrode Benefits
Description

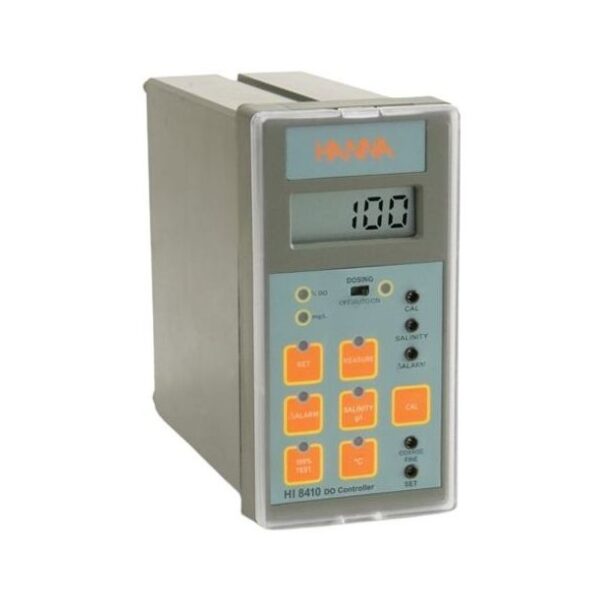

Dissolved Oxygen Controller
- HI 8410 is a panel-mounted DO controller designed for simplicity of use in a wide range of industrial process applications. Dissolved Oxygen is indicated in mg/L (ppm) or in % of saturation in accordance with the selection switch on the back panel. The temperature can be measured in the range from -5 to 50 ℃. The Dissolved Oxygen readings are automatically compensated for the temperature effects on the oxygen solubility and membrane permeability. Moreover, the salinity compensation feature allows the determination of Dissolved Oxygen even in salty waters.
- Fail Safe Alarm System protects these meters against the pitfalls of process control and uses low maintenance Galvanic probe.
- The instruments are designed with a standard DIN panel mount with membrane keypads and large LCD with backlight on the front, and provide a series of auto-diagnostic functions. Probes, power supply, contacts and recorders are connected on the rear panel through screw terminals.
- The DO probe is provided with a membrane covering the galvanic sensor and a built-in thermistor for temperature measurement and compensation.
- The Oxygen that passes through the membrane causes an electric current flow, from which the oxygen concentration is determined. Other features include: recorder output in 0-20 mA or 4-20 mA configuration; LED indicators which identify whether the controller is in operation mode or setup selection mode; overtime control function; hysteresis setting. The instrument is supplied with a plastic front cover and two mounting brackets. Power cables are not included.
Galvanic DO Probe with Internal Temperature Sensor
- Galvanic technology eliminates noise and instability
- Built-in temperature sensor for Automatic Temperature Compensation
- Built for everyday, demanding use in industrial applications
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
HI8410 BENEFITS:
- Fail Safe Alarm System: Hanna’s exclusive Fail Safe Alarm System protects against problems caused by power supply failure or signal interruption, which are typical risks in industrial environments. An alarm condition is indicated by a red LED, located directly on the front panel of the controller.
- Automatic Temperature Compensation: The Dissolved Oxygen readings are automatically compensated for the temperature effects on the oxygen solubility and membrane permeability
- Salinty Compensation: The salinity compensation feature allows the determination of Dissolved Oxygen even in salty waters.
- Simple to Use: The instruments are designed with a standard DIN panel mount with membrane keypads and large LCD with backlight on the front, and provide a series of auto-diagnostic functions.
- Analog Output: To enhance troubleshooting and the ability to record data while monitoring, simply attach a recording device to the instrument’s 4 to 20 mA output contacts, conveniently located on the front panel, to obtain a copy of the results on demand.
- Diagnostic Tests: The HI 8410 controllers are designed with built-in diagnostic functions to enable the user to check and troubleshoot the instrument. The checks performed are through the front panel keys and can be used to isolate the cause of malfunction.
HI76410 Probe Benefits
Galvanic DO Probe: Provided with a membrane covering the galvanic sensor.
Built-in Thermistor Temperature Sensor: Ensures fast, accurately compensated readings even during sudden temperature fluctuations.
DIN Connector: Multi-pin sensor connector is manufacturer specfic and allows for easy connection to the compatable meter.
Variety of Cable Lengths: Models can be ordered with either a 4 m, 10 m, or 30 m cable length to meet your process needs.
