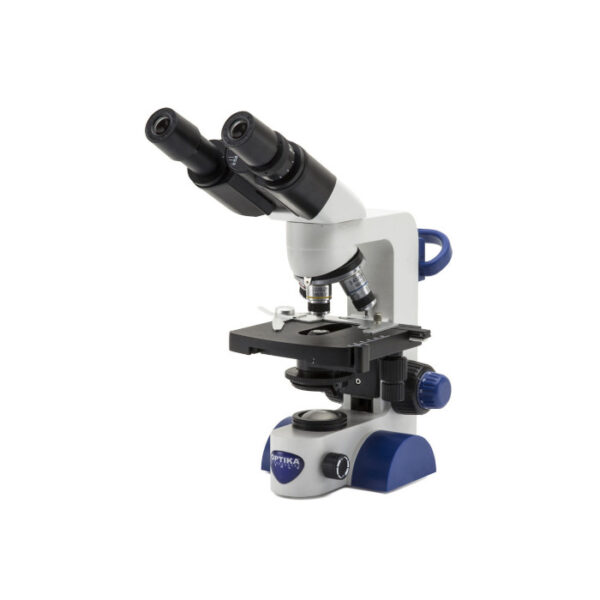

Binocular Brightfield 400x Compound Microscope, Multi-Plug
Binocular compound microscope, 400x, achromatic objectives
- Additional information
Binocular 400x compound microscope, Observation mode: Brightfield.
Head: Binocular, 30° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepiece: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
– Achromatic 4x/0.10, with anti-fungus treatment
– Achromatic 10x/0.25, with anti-fungus treatment
– Achromatic 40x/0.65, with anti-fungus treatment
Specimen stage: StagErase™ eraseable mechanical stage,
125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes,
accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: 1 W LED, with brightness control, rechargeable batteries.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
|Dimensions||45 × 35 × 35 cm|
External, 220volt, 50Hz & battery, Ni-MH (3x, AAA size)
|Condenser - single position||
Abbe, 1.25 numerical aperture (N.A.), iris diaphragm, focusable by rotation
YES, LED, 1.5w, manual brightness control
Double layer 125 x 125mm tack and pinion with 2 x 24mm moving range
Coaxial coarse and fine, 23mm total travel, fine resolution 12μm
Upright, aluminium die-cast
Objectives: – Achromatic 4x/0.10, with anti-fungus treatment – Achromatic 10x/0.25, with anti-fungus treatment – Achromatic 40x/0.65, with anti-fungus treatment
Binocular Brightfield, 30° inclination, 360° rotating
10 x magnification & field number 18mm
Instructions in the box for standard binocular stereomicroscope & download from Optika
