R19,184.00 Excl. VAT

The C-HBSC is a compact, all-in-one camera system featuring an 11.5″ full HD monitor with a tilting feature and a user-friendly HD camera. With 1080p resolution and a 2 MP CMOS sensor, this system provides crisp, high-quality images and simple operation, requiring no software installation. Images are captured directly to the included SD card, and the system allows easy measurements of samples, including lines, angles, and more, with Excel storage support. Its space-saving design and adjustable screen make it ideal for long observation sessions, offering comfort and reducing fatigue. The system connects to the trinocular tube of any microscope via a dedicated adapter (sold separately) and includes a wireless mouse, HDMI cable, SD card, and built-in software for quick and easy setup. Lead time is 4-12 weeks.

Availability: Available on backorder SKU: OP-C-HBSC Categories: ,
View cart

Description

C-HBSC HB Camera, 1080p, 2 MP CMOS, HDMI, with screen, multi-plug

All-in-one, space saving package including 11.5″ full HD monitor with tilting feature and user-friendly HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.

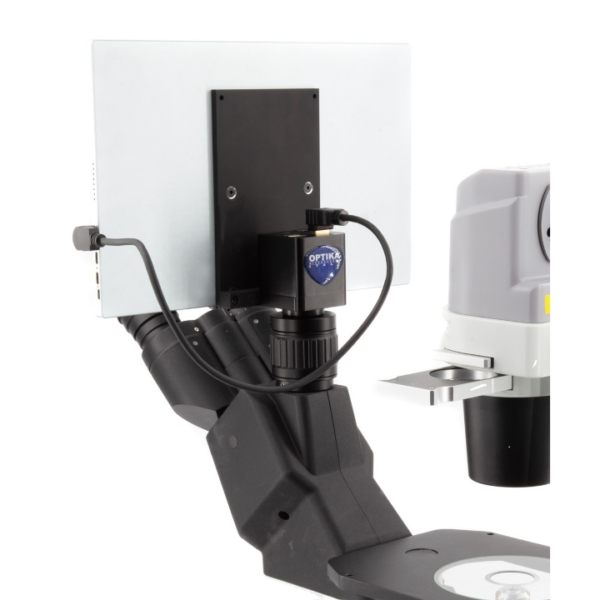

It also supports excel storage. Compact footprint, enabling screen tilting and adjustment to ensure correct posture and eliminate fatigue during observation. Connection to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately). Wireless mouse, SD card and built-in software included.

Features:

  • External digital camera connected to full HD monitor.
  • Large screen with fast, responsive and smooth control.
  • Simple operation, built-in software.
  • Universal connection to any microscope brand.
  • Vivid color graphic display.
  • Crisp Full HD images.
  • High frame rate.
  • Reliable color fidelity.
  • C-mount connection (via dedicated adapter, on any microscope).
  • HDMI cable, mouse and SD card included.

C-HBSC Contents:

  • HDMI camera.
  • HDMI monitor.
  • HDMI cable.
  • SD card.
  • Wireless mouse.
  • Multi-plug external power supply (2 pcs.).
  • Calibration slide.

Additional information

Weight 1 kg
Dimensions 10 × 10 × 10 cm

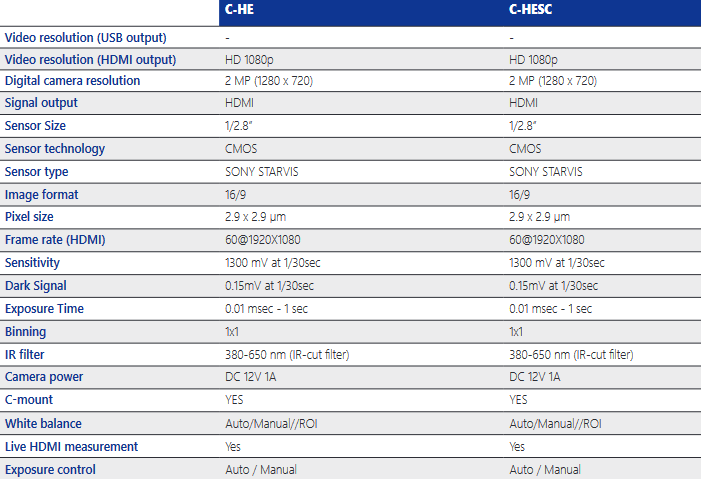

OPTIKA_C-HBSC_Technical_Datasheet_EN
