LBT Series Bottle Screw Cap Torque Testers
LBT Series Bottle Screw Cap Torque Testers

LBT Series Bottle Screw Cap Torque Testers

Advanced Ferrous and Non-Ferrous Integral Probe Advanced Ferrous and Non-Ferrous Integral Probe
HT-04D Entry Level Thermal Imager HT-04D Entry Level Thermal Imager

R26,000.00 Excl. VAT

The LBT Series Bottle Screw Cap Torque Testers are precision tools designed to measure the torque applied to bottle caps with exceptional accuracy. Available in four torque ranges: 2 N.m, 5 N.m, 10 N.m, and 20 N.m.  Please specify the desired range when placing your order. Featuring adjustable posts, they effectively grip bottles ranging from 20mm to 200mm in diameter, accommodating various shapes and sizes. With an intuitive interface, large LCD display, and the ability to store up to 100 readings, these testers offer a user-friendly experience. Key features include multiple measurement units, real-time and peak hold modes, and tolerance checking with color-coded indicators. The built-in micro printer, USB output for data export, and power-saving mode ensure ease of use and efficiency. Lead time is 3-4 weeks.

Availability: Available on backorder SKU: LBT Category:
View cart

Description

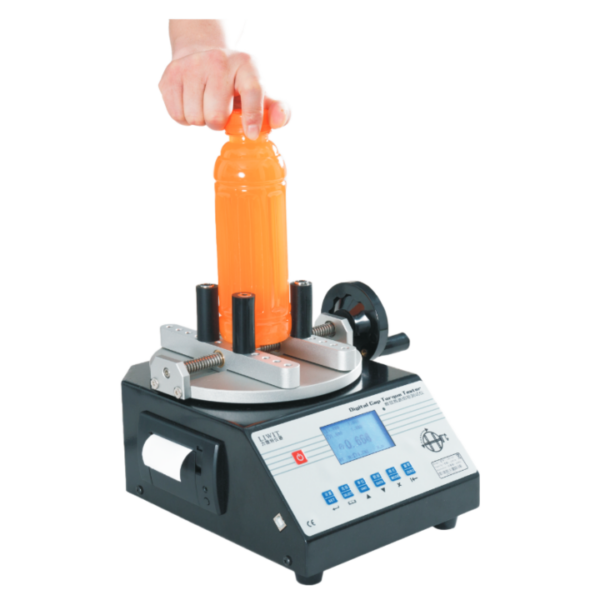

LBT Series Bottle Screw Cap Torque Testers

LBT Series Bottle Cap Testers are designed to measure the torque of bottle caps. Adjustable posts can grip a wide range of bottle shapes and sizes effectively. Simple operation and easy to use, large easy-to-read LCD display, big data memory.

Four models/ranges available: 2N.m, 5N.m, 10N.m or 20N.m

Standard Features

  • Clockwise and anticlockwise direction icon indication
  • 3 units of measurements: N.m, kgF.cm, IbF.in
  • 0.3% FS high accuracy and high resolution
  • 4 modes of measurement: Real time,peak, save,average Average mode: calculates average readings over time Upper and lower limit setting for tolerance
  • checking with three different colors indicator lamp
  • Backlight and buzzer inside, make screen more brightness and overload alarm
  • Individual data memory for up to 100 readings
  • Power saving mode of automatic shutoff without any operation
  • Micro printer inside and print saved data.
  • USB output, export saved data to the data software and view the load graph over time via graph software

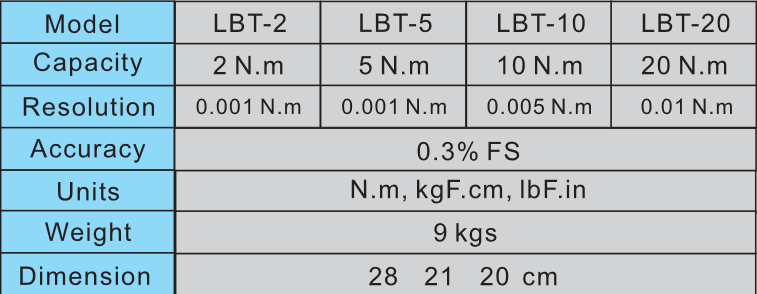

Specifications

  • Four models/ranges available: 2N.m, 5N.m, 10N.m or 20N.m
  • Clamping range: 20mm to 200mm diameter
  • Selectable units: N.m, Kgf.cm or lbf.in
  • CW/CCW and Peak hold modes
  • Display modes: Digital
  • Accuracy ±0.3% FS
  • Sampling rate: 500Hz (min)
  • Memory: 100 Data points
  • Upper/Lower limit setting for tolerance check (3 colour LED)
  • USB output to PC (software included)
  • AC mains powered
  • Built-in micro printer
  • c/w USB cable, software, power cord, 4 x pegs and user manual

Additional information

Weight 10 kg
Dimensions 28 × 21 × 20 cm
