Pocket Type Surface Roughness Tester

Description

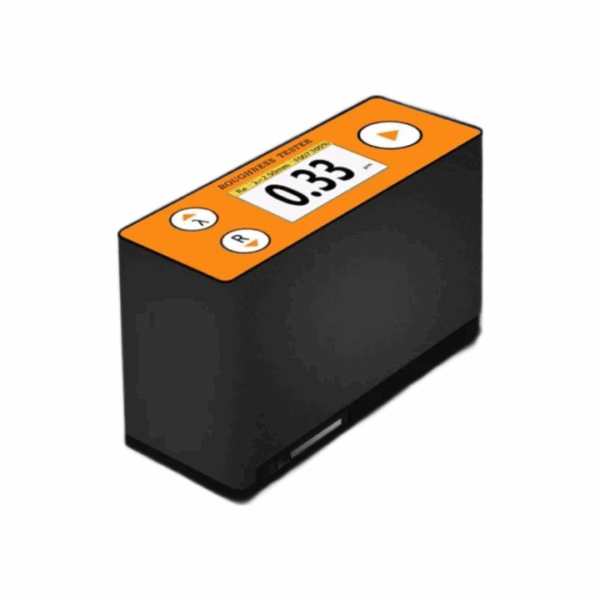

SSR100 Pocket Type Surface Roughness Tester

SSR100 portable roughness tester is a new generation it is portable surface roughness tester introduced by our company. It features high measurement accuracy, a wide measurement range, simple operation, easy portability, and stable operation. It can be widely used in the detection of various metal and non-metal processing surfaces. It is a pocket instrument integrated with the host and sensors. It has the characteristics of a handheld device and is more suitable for use on a production site.

Features

• The exterior is designed by drawing an aluminium die, which is durable and has remarkable anti – anti-electromagnetic interference ability
• 500 groups of measurement data can be stored
• The ARM microprocessor with low power consumption is used for data processing and calculation, which has a very high energy efficiency ratio.
• With an AA battery, it can work continuously for a long time
• The Bluetooth function can be used to connect with the App on the mobile phone, which is convenient for data operation and reading.
• The upper computer software is equipped to facilitate data reading and operation.

Specifications

• Small and compact size
• Ra, Rq: 0.05 ~ 10.00µm
• Rz, Rt: 0.10 ~ 50.0µm
• Error of indication ≤±10%
• Piezocrystal sensor 10.0±1μm / 90°
• Sample length: 0.25, 0.8, or 2.5mm
• Tracing Speed: 1 mm/s
• Stroke Length: 5.6mm
• Evaluation Length: 1.25mm, 4mm
• Display 1.14″ IPS TFT colour LCD
• Memory for 500 sets of measurement data
• Mobile APP for live view, data download, and saving
• Power: One 1.5V AA Alkaline battery
• Size: 73×28×62mm and approx. 220g
• c/w storage box, calibration block, battery, and manual

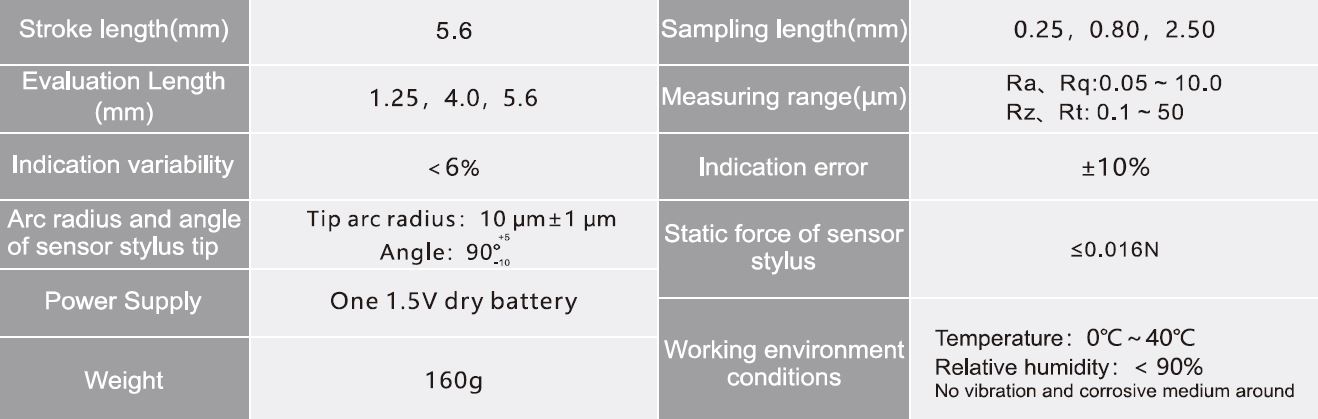

Product Technical Parameters

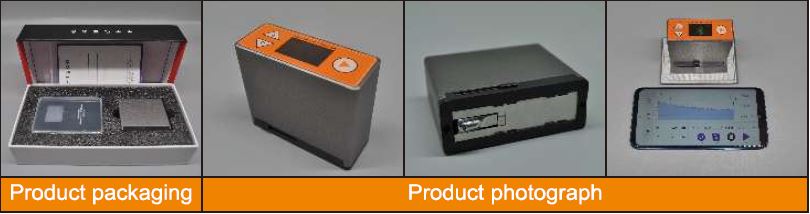

Standard Configuration

Additional information
