pH 8+ DHS Bench Meter with pH electrode XS standard T-BNC

Description

pH 8+ DHS Bench Meter pH electrode XS STANDARD T-BNC

pH- mV – Temperature – GLP – Data Logger

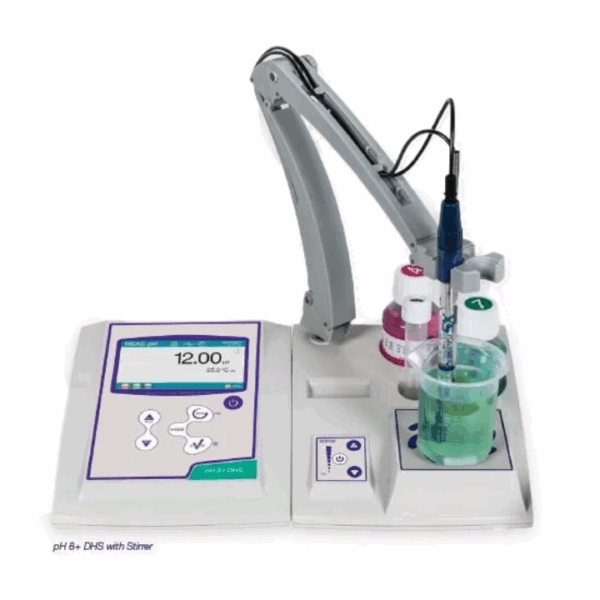

• pH8+ DHS Kit with STIRRER and pH electrode XS STANDARD T-BNC DHS. Cable S7/BNC 1m, temperature probe NT 55, colored buffer solutions pH 7 and pH 4, electrode holder, and accessories.



Main features

• Selectable resolution: 0,1/0,01 pH
• Simultaneous display of pH / mV and temperature
• Analogic view with alarm MIN/MAX
• 3 points Automatic calibration, auto recognition of USA/NIST buffer solutions
• 2 points Manual calibration (pH buffers defined by the user)
• Large colored display with indication of Calibration standard used and measurement’s stability
• Stability measure filter (Tit-Med-High) for high accuracy of
  measurement
• Indication of stability with an icon
• Stirrer plate included (in stirrer version)
• Numeric password for calibration management and data memory deletion
• Memory recall of the last calibration, date, and time, and information about the conditions of the electrode
• Calibration Timer with alarm
• Non-volatile memory holds up to 1000 data points, with date and time, in automatic (Data logger) or manually, downloadable on PC with free software “DataLink” or printable
• Multilanguage menu setup

pH 8+ DHS Specifications

• pH measuring range: 2…16
• Resolution/accuracy: 0.1 / 0.01/ ±0,02
• Calibration points: 1…3
• Buffer auto recognition: USA, NIST, 2 editable user buffers
• Indication of calibration points: Yes
• GLP Calibration: Yes, with date and time
• Indication of conditions of the electrode: Yes, icon and graph
• Calibration timer with alarm: Yes
• mV measuring range (redox) / Resolution: ± 2000 / 1
• Temperature measuring range: -10…+110 °C
• Resolution / Accuracy: 0.1/ ±0,5 °C
• Temperature compensation: Automatic or Manual 0…100 °C
• GLP System: Yes
• Password: Yes, numeric
• Memory: MAN/AUTO 1000 data, with date and time
• Display: Multicolor dot matrix, with icons, digital view or analogical view

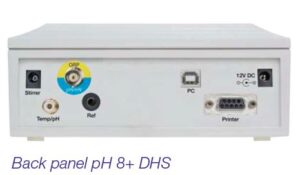

• Input: BNC, Cinch/RCA (ATC), RS 232 for printer, USB for PC connection
• Selectable languages: 8 languages
• IP protection: IP 54
• Power supply: AC/DC adaptor 12V / 1000mA
• Dimensions: 165 x 195 x 68 mm
• Weight: 1050 g (without stirrer)

DHS Digital High Sensor

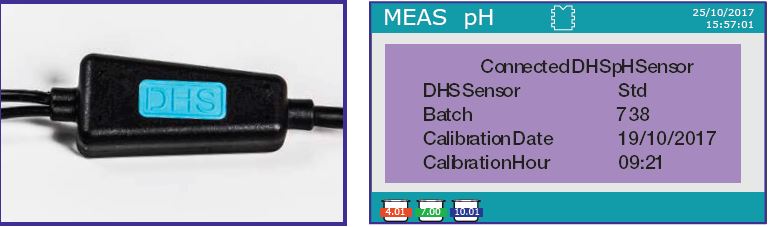

Digital High Sensors are the new pH sensors with an internal chip that stores parameters, date of last calibration, model, and production batch of the electrode. In the instruments, pH8+ DHS and pH 80+ DHS, a special chip with the same technology is inserted. After connecting the pH DHS sensor to the instrument, all the data stored in the sensor chip is automatically transferred to the instrument. The display will show on a screen: DHS, sensor model, production batch, date, and hour of the last calibration.

After a new calibration of the DHS electrode, the data is automatically stored in the electrode chip. Let’s move this electrode to another DHS-enabled instrument. We can start working immediately and with extreme security, as the data from the last calibration will automatically be transferred and used for pH measurements.

New DHS pH sensors do not have an internal battery, so they can be stored like a normal pH electrode and do not require special connectors; instead, they use a standard BNC connector.

Many manufacturers using digital sensors have developed dedicated meters for these sensors. This imposes a full range of digital sensors for a variety of applications or lab requirements. Our research and development team has designed this new line of instruments to work with the new DHS digital sensors and the normal analog pH sensors, all brands, which can be connected to the same pH meter. From now on, the pH measurement will be simpler.

Additional information

Weight	2 kg
Dimensions	20 × 20 × 10 cm
