B-61 compound monocular microscope
R5,800.00 Excl. VAT
Optika B-61 entry-level biological microscope for students, mains and battery powered, portable model. 40x, 100x and 400x magnifications.
Monocular microscope, 400x, achromatic objectives.
- Description
- Additional information
- Technical datasheet
- Detailed Specification
Description
Student microscope, Optika B-61
This is a good student or entry level monocular, compound microscope.
Perfect for the first experiences, OPTIKA B-60 Series represents the most modern cordless microscope ideal for students.
Slim and easy to carry, every detail has been carefully thought out to let the user work with enhanced comfort and intuitiveness compared to any other solutions in this class.

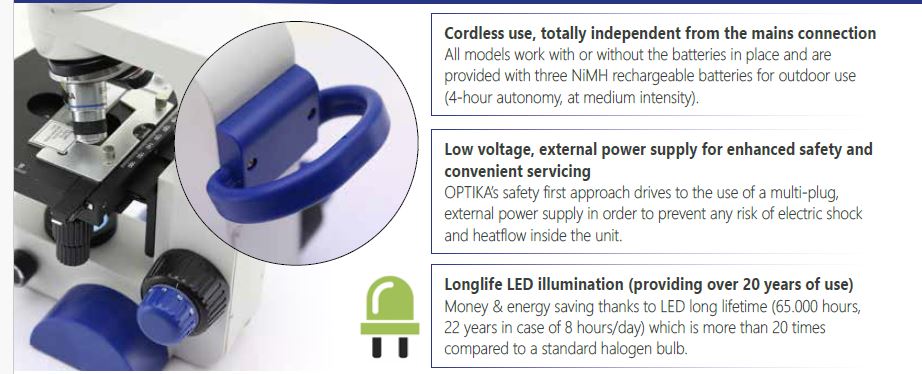

Available in several configurations to meet the most diversified needs, B-60 is powered by a bright LED to ensure clear observations over 20 years of use and totally independent from the mains thanks to the rechargeable batteries.
Specification
Observation mode: Brightfield.
Head: Monocular, 45° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives:
– Achromatic 4x/0.10, with anti-fungus treatment
– Achromatic 10x/0.25, with anti-fungus treatment
– Achromatic 40x/0.65, with anti-fungus treatment
Specimen stage: StagErase™ eraseable fixed stage, 120×110 mm, with sample clips.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: N.A. 0.65 with iris diaphragm.
Illumination: 1 W LED, with brightness control, rechargeable batteries (not included).
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Portable, battery powered with rechargeable batteries
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 40 × 30 × 30 cm |
Optika B-61 compound monocular microscope, 400x, achromatic objectives
