SLX-3: 7x-45x Stereomicroscope/dissecting microscope low magnification
R15,556.00 Excl. VAT
Trinocular stereozoom microscope, 7x-45x.
- Description
- Additional information
- Add a camera to your microscope
- Instructions
Description
Optika Italy, Trinocular stereomicroscope, 7x – 45x. This is a low magnification microscope for viewing larger objects. Observation mode: Brightfield.
Head: Binocular head, 45° inclined.
Interpupillary distance: Adjustable.
Dioptric adjustment: Both eyepieces.
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Stand: High-grade, precision fixed with handle and focus.
Focusing: Rack and pinion focusing mechanism.
Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries. Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Working distance: 100 mm.

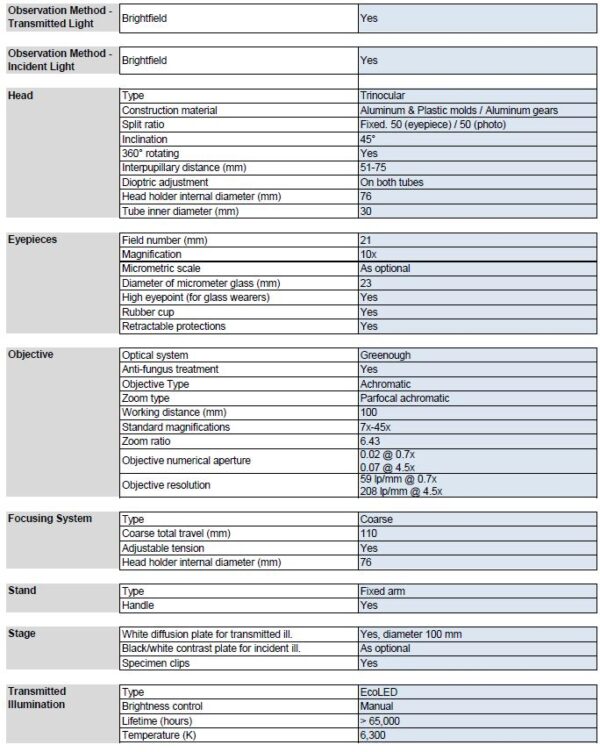

Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 50 × 42 × 31 cm |
| Brand | Optika |
| Model Number | SLX-3 |
| Power type | External, 220volt, 50Hz & rechargeable batteries Ni-MH (3x, AA size) |
| Weight | 5kg |
| Product size | 365(h)x205(w)x280(d)mm |
| Incident Illumination | Yes, EcoLED, 6,300 K |
| Transmitted light | YES, EcoLED, 6,300K |
| Working distance | 100mm |
| Focusing system | Coarse travel: 110mm with adjustable tension |
| Stand | Fixed arm, with handle |
| Stage | With specimen clips, 100mm diameter plate, either frosted for transmitted light or black/white for incident light |
| Head | Trinocular, 45 degree inclination, 51-75 interpupillary distance, dioptric adjustment on both tubes, 30mm tube diameter |
| Eyepieces | 10 x magnification & field number 21mm, with rubber cap, 23mm diameter for micrometer glass |
Available Cameras:
Click here to view C-B10+ Microscope Camera
Click here to view C-B5 Microscope Camera
Instructions in the box for standard binocular stereomicroscope & download from Optika.
