Name: pH 80+ DHS Bench Meter with pH electrode XS standard T-BNC
SKU: XSI/50101392
Availability: BackOrder

pH 80+ DHS Bench Meter with pH electrode XS standard T-BNC

R20,845.00 Excl. VAT

pH 80 PRO kit with stirrer and pH electrode XS STANDARD T BNC DHS, cable S7/BNC, temperature probe NT55, colored pH buffer solutions pH 7 and pH 4, soft keypad, electrode arm, power supply, and accessories. Lead time is 4 weeks.

Availability: Available on backorder SKU: XSI/50101392 Categories: Test & Measure, XS Instruments

Description
Additional information

Description

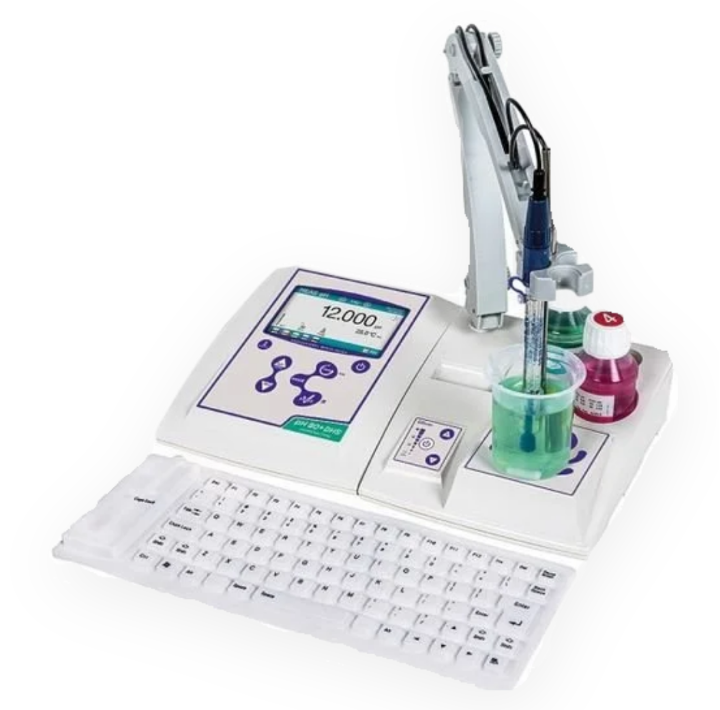

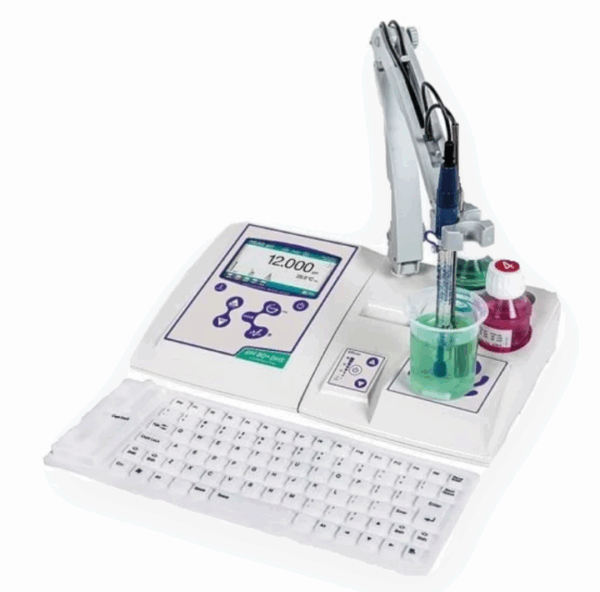

pH 80+ DHS Bench Meter

pH – mV – ION – Temperature – GLP – GMP – Data Logger

pH 80+ DHS kit with STIRRER and pH electrode XS STANDARD T-BNC DHS, temperature probe NT 55, cable S7/BNC 1m, colored buffer solutions pH 7 and pH 4, soft keypad, electrode holder, power supply, and accessories.

Main features

Selectable resolution: 0,1/0,01/0,001 pH
Simultaneous display of pH / mV / ISE and temperature
Analogic view with alarm MIN/MAX
GLP and IQ-OQ manual available
5 points Automatic calibration, auto recognition of USA/NIST/DIN buffer solutions
5 points Manual calibration (pH buffers defined by the user)
5 points Automatic calibration with Ion (ISE) electrode
Wide colored display with indication of Calibration standards used and measurement’s stability
Memory recall of the last calibration, date, and time, and information about the conditions of the electrode
Calibration Timer: set the frequency of calibration for high-quality measurements
Stability measure filter (Tit – Medium – High) for high accuracy of measurements
Alphanumeric password for calibration management and data memory delete with soft keypad included
Stirrer plate included (in stirrer version)
Indication of stability with an icon
Non-volatile memory holds up to 1000 data points, with date and time, in automatic (Data logger) or manually, downloadable on PC
with the free software “DataLink” or printable
Multilanguage menu setup
Quick online manual
2 USB ports for data PC downloading and for an external keyboard are included
RS232 port for printer connection

pH 80+ DHS Specifications

pH measuring range: 2…20
Resolution/accuracy: 0.1 / 0.01 / 0.001 / ±0,002
Calibration points: 1…5
Buffer auto recognition: USA, NIST, DIN, 5 editable user buffers
Indication of calibration points: Yes
GLP Calibration: Yes, with date and time
Indication of conditions of the electrode: Yes, icon and graph
Calibration timer with alarm: Yes
Stability filter: Tit – Medium – High
Alarm settings: MIN-MAX
mV measuring range (redox) / Resolution: ± 2000 / 0.1 / 1
Ion measuring range: 0,001…19999 ppm
Units: mol/L – mg/L – g/L
Calibration points: 2…5
Temperature measuring range: -20…+120 °C
Resolution / Accuracy: 0.1 / ±0,5 °C
Temperature compensation: Automatic or Manual 0…100 °C
GLP System: Yes
Password: Yes, alphanumeric
Memory: MAN/AUTO 1000 data, with date and time
Display: Multicolor dot matrix, with icons, digital view, or analog view

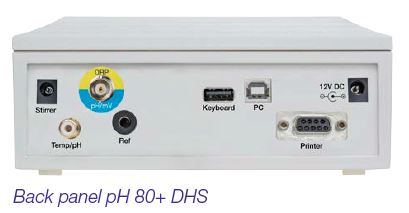

Input: BNC, Cinch/RCA (ATC), RS 232 for printer, USB for PC, and USB for external keyboard
Selectable languages: 8 languages
Online manual: Yes
Magnetic stirrer: Yes (optional)
Speed control: 0…3000 rpm
IP protection: IP 54
Power supply: AC/DC adaptor 12V / 1000mA
Dimensions (cm): 16.5 × 19.5 × 6.8 cm
Weight (kg): 1.05 kg

DHS Digital High Sensor

Digital High Sensors are the new pH sensors with an internal chip that stores parameters, date of last calibration, model, and production batch of the electrode. In the instruments, pH8+ DHS and pH 80+ DHS, a special chip with the same technology is inserted. After connecting the pH DHS sensor to the instrument, all the data stored in the sensor chip is automatically transferred to the instrument. The display will show on a screen: DHS, sensor model, production batch, date, and hour of the last calibration.

After a new calibration of the DHS electrode, the data is automatically stored in the electrode chip. Let’s move this electrode to another DHS-enabled instrument. We can start working immediately and with extreme security, as the data from the last calibration will automatically be transferred and used for pH measurements.

New DHS pH sensors do not have an internal battery, so they can be stored like a normal pH electrode and do not require special connectors; instead, they use a standard BNC connector.

Many manufacturers using digital sensors have developed dedicated meters for these sensors. This imposes a full range of digital sensors for a variety of applications or lab requirements. Our research and development team has designed this new line of instruments to work with the new DHS digital sensors and the normal analog pH sensors, all brands, which can be connected to the same pH meter. From now on, the pH measurement will be simpler.
