TA622C Thermohygrometer / Logger

Description

TA622C Thermohygrometer / Logger

High Precision Measurement Meter: TA622 Series is a new type of digital temperature and humidity meter with high-precision probe, which is designed to combine the functions of a humidity meter, temperature meter, wet temperature, and dew point temperature. And dew point is a measure of how much water vapor is actually in the air.

Wide Range: Dual display humidity and temperature with accurate measuring: Humidity range: 0% – 100%RH. Temperature range:
40°C(-40°F) – 80°C(176°F). Dew point Temperature -40°C(-40°F) – 80°C(176°F). Wet Temperature: Temperature:-40°C(-40°F) – 80°C(176°F).

Sound And Light Alarm: The upper and lower alarm limit can be set separately. When over upper / lower limit, there will be a alarm sound, and the alarm indicator light will flash.

Multiple Functions: With data hold, data storage, unit conversion, backlight, low battery indicator, automatic shutdown, and maximum and minimum functions

VA Color Screen: LCD display with backlight with high accuracy sensor, LCD brighter in the darker places. Auto shutdown without operation after 15 minutes(can be canceled manually).

Wide Application: Digital temperature and humidity meter are used for a high range of applications HVAC, including industry, agriculture, meteorology, medicine, daily life, building engineering, paranormal investigator, the wine cellar, machine room, and data storeroom.

Includes

• Relative humidity: 0~100% (accuracy ±3% from 10-90%, maximum 5%)
• Temperature: -10~+80°C (accuracy ±0.5°C)
• Dewpoint and Wet bulb readings
• 4000 groups memory (Timer based 00:00:00, No date and time)
• USB and free software download
• Dual backlit LCD display with auto power off
• Max, Min and data hold

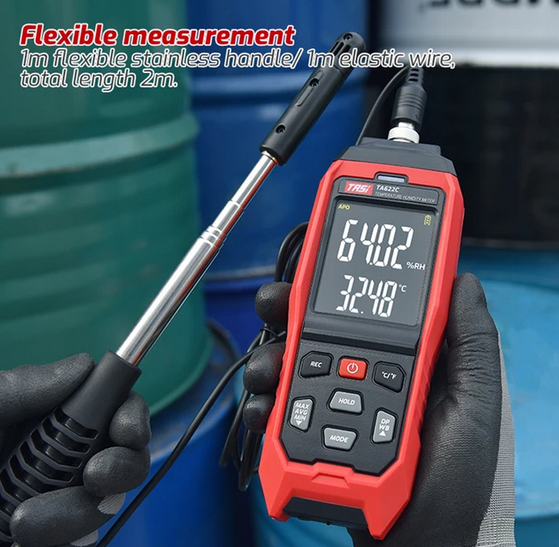

• Probe 170mm long x 15mm diameter on 2m lead
• c/w carry case, probe and battery

TA622C Specifications:

• Model: TA622A / TA622B / TA622C
• Measurement method: TA622A/TA622B: Integral type; TA622C: Split type

Environment Temperature:

• Range: -40-80°C (40-176°F)
• Accuracy: +0.5°C, =1°F
• Resolution: ≤ 100°C, 0.01°C/ 0.01°F, =100°F, 1°F
• Relative Humidity:
• Range: 0-100% RH
• Accuracy: 3.0%RH (10-90 %RH)
• Other Range: #5.0%RH
• Resolution: < 100%RH 0.01%RH

Wet Bulb Temperature:

• Range: -40-80°C (-40-176°F)
• Accuracy. +0.4°C, +1°F
• Resolution: = 100°C, 0.01°C/ 0.01°F, =100°F, 1°F

Dew Point Temperature:

• Range: -40-80°C (-40-176°F)
• Accuracy: +0.4°C, #1°F
• Resolution: ≤ 100°C, 0.01°C / 0.01°F, ≥100°F, 1°F

Dew Point Temperature:

• Range: 40-80°C (-40-176°F)
• Accuracy. +0.4°C, +1°F
• Resolution: < 100°C, 0.01°C / 0.01°F, ≥100°F, 1°F

K-Type Thermocouple (Only TA622C):

• Range: -50~1300°C(-58-2372°F)
• Accuracy: +(0.1% + 1.0°C), +(0.2% + 1.0°F) (not including the probe error)
• Resolution: 1°C / 1°F
• Sensor: Swiss (SHT C3)
• Sampling Rate: 10 times/s
• Refresh Rate: 3 times/s
• Recording Time: From REC start, max 99H
• Data logger: TA622A: 8000 groups; TA622B: 4000 groups, TA622C 8000 groups.
• Only store temp. & hum data( not support thermocouple data)
• USB Connection: Only TA622B/TA622C are supported
• Auto Off 15 mins (can be canceled)
• Working Environment – 10~50°C, max 80%RH, indoor altitude < 2000m
• Storage Environment. -10-50°C, max 70%RH (battery removed)
• Screen Size: 53 x 44mm
• 3 * 1.5V AA (LR06) battery(not included); USB micro interface 5V
• Material: ABS

Package List:

• 1 * Temperature And Humidity Meter
• 1 * Cloth Bag
• 1 * USB Data Cable (Only Available in TA622B/TA622C)
• 1 * User Manual (English)

Additional information

Weight	1 kg
Dimensions	40 × 40 × 40 cm
